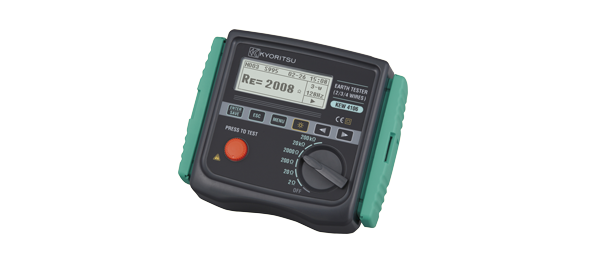

Kyoritsu Model 4106 Earth Resistance & Resistivity Tester

Earth Resistance & Resistivity Tester

• High test current up to 80mA yielding resolution of 0.001Ω on 2Ω range.

• Advanced Filtering method (based on FFT Fast Fourier Transform) reduces noise interference for obtaining stable measurements.

• Automatic and Manual selection of the Test Current Frequency in four bands (94/105/111/128Hz). In Automatic mode, KEW 4106 will select the most suitable Frequency.

• Several sub-results can be shown on the display: Resistance of the Auxiliary Earth Spikes, Frequency of Test Current, Voltage and Frequency of Interference (noise), Residual Resistance Rk, etc.

• Warning for excessive noise and high Auxiliary Earth Spikes resistance.

• Large Graphic Display with backlight for readings in poorly illuminated areas.

• Up to 800 measurement results can be saved in the memory and recalled on the display.

• The stored results can be transferred to a PC using the "KEW Report" software and a USB adaptor (Model 8212-USB) which are included.

• Robust design with IP54 protection.
