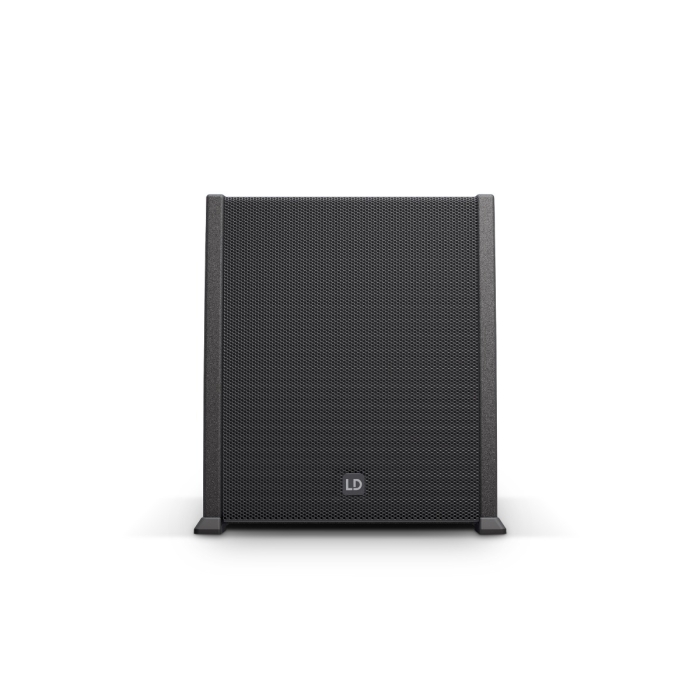

LD Systems CURV 500 SE Subwoofer Extension for CURV 500® Portable Array System
PRODUCT OVERVIEW
This subwoofer expansion allows the LD CURV 500® array system to become even more powerful. 300 watts RMS and 1200 watts peak for the bass reproduction provide for substantial punch in the bass range. Of course, additional array satellites can be connected and supplied with a power of 160 watts RMS and 640 watts peak.
The power required is supplied by two Class D power amplifiers with switching power supply. The 10-inch woofer resides in a black bass-reflex cabinet made of plywood. The 325 x 383 x 491 mm large cabinet with PA-protective coating weighs 16.5 kg and can be easily transported by means of three ergonomically shaped handles. In addition to a DSP-based multiband limiter, protection circuits prevent short-circuits, overheating or overloading and ensure safe operation.
The humming noises caused by voltage potentials can be avoided with the ground lift function. An M20 threaded flange is included for mounting an optional extension tube. In terms of system wiring, there is a five-pin XLR input and a five-pin XLR output. Satellites are connected by means of a Speakon-compatible socket.
- 10-inch woofer in a bass-reflex cabinet with satellite output
- Power Output (RMS/Peak): 300 W/1200 W Subwoofer; 160 W/640 W Satellite
- Class D power amplifier with switching power supply
- DSP-based multiband limiter for distortion-free sound
- Protection circuits
- Plywood cabinet with PA-protective lacque
- Five-pin XLR sockets for system wiring
| Product Name | LD Systems CURV 500 SE Subwoofer Extension for CURV 500® Portable Array System |
|---|---|
| Weight | 16.00 Kg |
| Frequency Response | 47 Hz |
| Power Capacity | 900 W |
| Dimensions | Width 325 mm Height 383 mm Depth 491 mm |
| Manufacturer | LD Systems |
| Color | Black |
| Country of Origin | United States |
