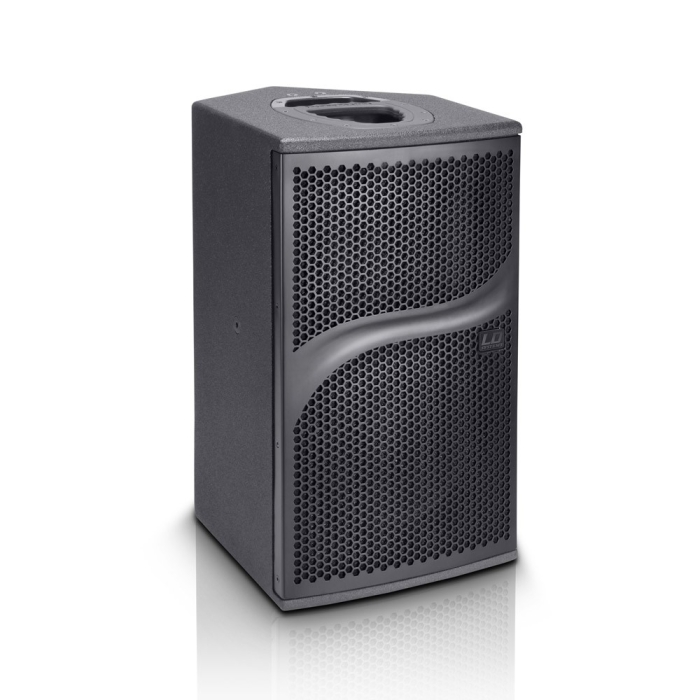

LD Systems DDQ 15 15" Active PA speaker With DSP
PRODUCT OVERVIEW
DDQ 15 2-Way Touring Class Powered Loudspeaker with DSP
The LD Systems DDQ 15 is an ultra high efficiency 2-way biamped loudspeaker for FOH and monitor applications, delay lines, portable PA systems and fixed installations delivering superior touring class performance.
A 24-bit/48 kHz custom Sharc DSP provides volume control, delay, EQ, crossover, phase alignment and comprehensive protection functions for precision adjustment and reliable operation while its 1ms look-ahead limiter ensures distortion-free audio at all levels. In addition, the DDQ features digital encoding, a high pass filter and ground lift switch.
The 15” FaitalPRO neodymium woofer and BMS compression driver complement is biamped by two Hypex UcD700 Class D modules with high efficiency SMPS and extremely low noise and THD. With 1.400 watts RMS output, 38 Hz – 20 kHz frequency response, 80° x 50° dispersion and a peak SPL of 136 dB the DDQ 15 provides superior high-power audio performance.
The 15 mm birch ply bass reflex enclosure with an extremely durable polyurethane finish incorporates a 50° angle and asymmetrical HF horn rotatable for floor monitor use. The hardware includes a steel grille, multiple flying points and the innovative Evolutive handles for easy portability.
- Touring class active PA speakers with Sharc DSP (24bit/48kHz)
- Distortion free thanks to 1 millisecond predictive peak limiter
- State of the art analog/digital converters (127dB/113dB dynamic range)
- Max SPL (peak): 136dB
- 80° x 50° rotatable asymmetrical horn flare
- 38 – 20,000 Hz frequency response
- 2 x Hypex 700 Watt Class D amplifier modules
- 15“ Faital Pro neodymium woofer
- 1.4“ BMS compression driver
- Switchable high-pass filter
- 50° monitor angle
- 13 x M10 flying points
- Lightweight
- Made in Germany
| Product Name | LD Systems DDQ 15 15" Active PA speaker With DSP |
|---|---|
| Weight | 31.50 Kg |
| Frequency Response | 38 - 20000 Hz |
| Power Capacity | 1400 (2 x 700) W |
| Maximum SPL | 136 dB |
| Enclosure | 15mm birch plywood |
| Dimensions | Width 420 mm Height 736 mm Depth 488 mm |
| Manufacturer | LD Systems |
| Color | Black |
| Country of Origin | United States |
