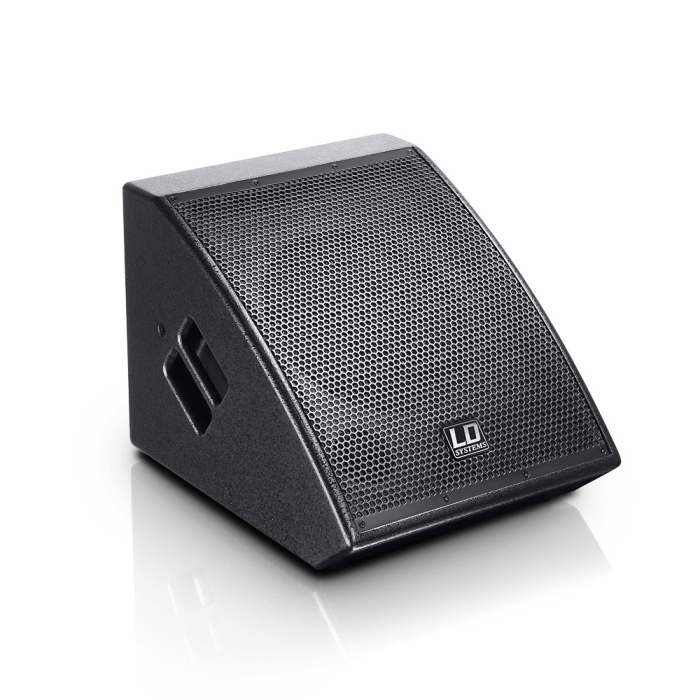

LD Systems MON 101 A G2 10" Active Stage Monitor
PRODUCT OVERVIEW
LD Systems Stinger MON101AG2
The LD Stinger MON101AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 121dB for versatile use on stage.
The 10" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output of 600W Peak. Short-circuit protection and a limiter ensure dependable operation.
The rear connector panel offers an XLR-jack combo input and XLR output for looping through the signal; other features include a volume control, IEC power socket and switch, and LED indicators for power, signal, and limiter.
The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.
| Product Name | LD Systems MON 101 A G2 10" Active Stage Monitor |
|---|---|
| Weight | 15.30 Kg |
| Frequency Response | 90 - 20000 Hz |
| Power Capacity | RMS150 W Peak power600 W |
| Maximum SPL | 121 dB |
| Dimensions | Width 380 mm Depth 335 mm Height 466 mm |
| Manufacturer | LD Systems |
| Color | Black |
| Country of Origin | United States |
