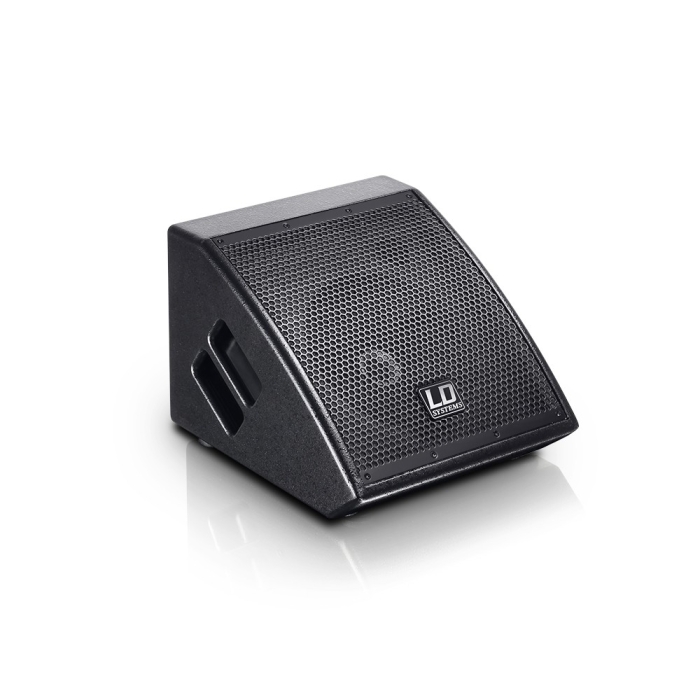

LD Systems MON 81 A G2 8" Active Stage Monitor
PRODUCT OVERVIEW
LD Systems Stinger MON81AG2
The LD Stinger MON81AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 116dB for versatile use on stage.
The 8" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output power of 320W Peak; short-circuit protection and a limiter ensuredependable operation.
The signal is connected and looped through using an XLR/ jack combo socket and the XLR output. The rear connector panel is rounded out by a volume control, LED indicators, and the IEC power socket.
The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.
| Product Name | LD Systems MON 81 A G2 8" Active Stage Monitor |
|---|---|
| Weight | 17.80 Kg |
| Frequency Response | 90 - 20000 Hz |
| Frequency Range | 2400 Hz |
| Power Capacity | RMS80 W Peak power 320 W |
| Maximum SPL | 116 dB |
| Dimensions | Width 320 mm Depth 250 mm Height 361 mm |
| Manufacturer | LD Systems |
| Color | Black |
| Country of Origin | United States |
