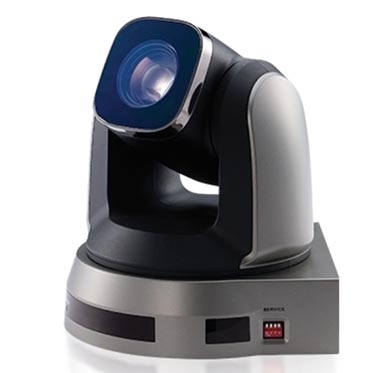

Lumens VC-A20P Video Camera
The VC-A20P supports stereo audio input and AAC encoding transmission through the Internet to extend the distance of the audio device.
The Lumens VC-A20P HD Pan/Tilt/Zoom (PTZ) IP camera is equipped with a professional 1/2.8 inch image sensor with Full HD 1080p output at 60 frames per second. The superior 10x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness in a lecture hall. The camera covers a wide shooting angle and achieves high-speed, quiet, and precise positioning with smooth PTZ operations. The VC-A20P has different interfaces like Ethernet, DVI-I, and C-Video and it also supports live broadcasting with H.264/ MJPG format further more its low-latency less than 150ms. These features not only allow for simultaneous image outputs, they also result in the best image quality and is compatible with all video equipment. The VC-A20P is ideally suited for lecture recording, videoconferencing, and live broadcasting.
- Full HD 1080p high definition signal output format with a high frame rate of 60 fps
- 10x optical zoom
- Support live broadcasting (H.264/MJPG format, SVC and ONVIF protocol)
- Low latency (
- Ethernet, DVI-I, and C-Video image outputs synchronously
- Maximum horizontal/ vertical speed of rotation: 120 degrees/ second
- Audio Input Support AAC encoding with 44.1/48K sampling frequency
- Built-in image flip and mirror function for easy installation
| Product Name | Lumens VC-A20P Video Camera |
|---|---|
| Sensor | 1/2.8” 2MP CMOS |
| Optical Zoom | 10x |
| Digital Zoom | - |
| Output Resolution | 1080p 60 / 59.94 / 50 / 30 / 29.97 fps, 1080i 50 / 60 fps, 720p 60 / 50 fps, NTSC / PAL |
| Shooting Area | 100(Wide) ~ 1000(Tele) mm |
| Lamp | - |
| VGA Input | - |
| VGA Output | DVI-I, Ethernet, CVBS (C-Video) |
| HDMI Output | - |
| Built-in Microphone | - |
| Audio Recording | - |
| Memory Card Slot | - |
| Built in Memory | - |
| Focus | Auto, Manual |
| Image Rotation | yes |
| Software | - |
| Weight | 0.82 Kg |
| Manufacturer | Lumens |
| Color | Black |
