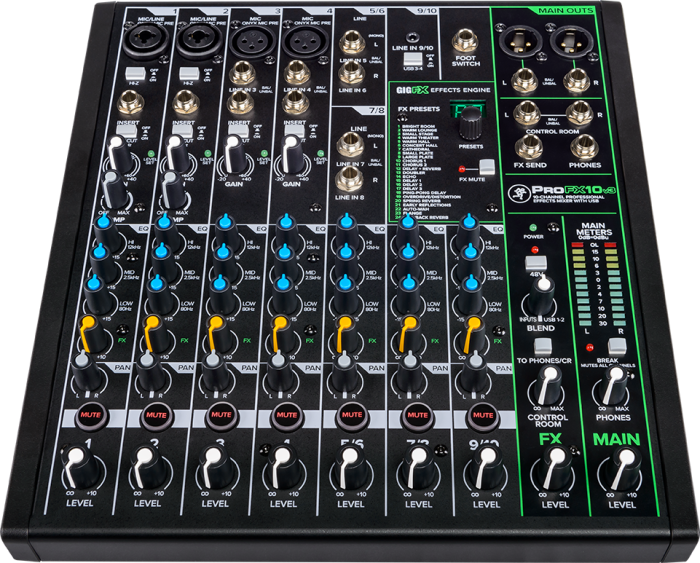

Mackie ProFX10v3 10 Channel Professional Effects Mixer with USB
The Mackie ProFX10v3 is a 10-channel mixing console featuring four Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators.
PRODUCT OVERVIEW
The Mackie ProFX10v3 is a 10-channel mixing console featuring four Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.
Channels 1-2 offer combo XLR-1/4" mic/line connections and feature single-knob compression and Hi-Z (for guitar and bass), while channels 3-4 offer XLR or 1/4" inputs. Channels 1-4 include inserts, low-cut filters (100 Hz), and gain controls. Channels 5/6 and 7/8 offer two 1/4" inputs, while channel 9/10 use a 3.5mm stereo input. All channels offer 3-band EQ, dedicated FX send, pan, mute, and level controls. Engaging channel 9/10's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer. The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include a pair of control room outputs with level control, an input USB 1/2 blend control, a dedicated FX output, an FX level control, and an FX mute, which can also be controlled via the 1/4" footswitch input.
The ProFX10v3 features a download for ProTools | First software, Waveform OEM, and The Musician Collection plug-in package including 23 high-quality plugins including BBD Delay, Level Lite, 304E EQ, and 304C Compressor. You also get Tracktion Waveform and the DAW Essentials Collections. The Mackie ProFX10v3 includes a USB cable and power supply.
Key Features
- 4 Mic/Line Inputs (Comp 1-2)
- 2 Mono/Stereo Line Inputs + 1/8" Input
- 2-In / 4-Out USB (24-Bit, 192 kHz)
- GigFX Effects Engine (24 FX Presets)
| Product Name | Mackie ProFX10v3 10 Channel Professional Effects Mixer with USB |
|---|---|
| Weight | 2.22 Kg |
| Sensitivity (SPL / 1 W @ 1 m) | 108 dB/mW |
| Impedance | Mic In: 3.3 Kilohms Channel Insert Return: 10 Kilohms All Other Inputs: ≥20 Kilohms Phones Output: 25 Ohms All Other Outputs: 120 Ohms Unbalanced, 240 Ohms Balanced |
| Frequency Response | Mic Input to Any Output (Gain at Unity, +0 dB / -1 dB): 20 Hz to 30 kHz |
| Max. Power Consumption | Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz Power Supply: 12 VDC at 2A Class I Hard-Wired Wall Mount Adapter |
| Dimensions | 3.2 x 10.7 x 11.9" / 8.1 x 27.1 x 30.2 cm |
| Manufacturer | Mackie |
| Color | Black |
| Country of Origin | United States |
