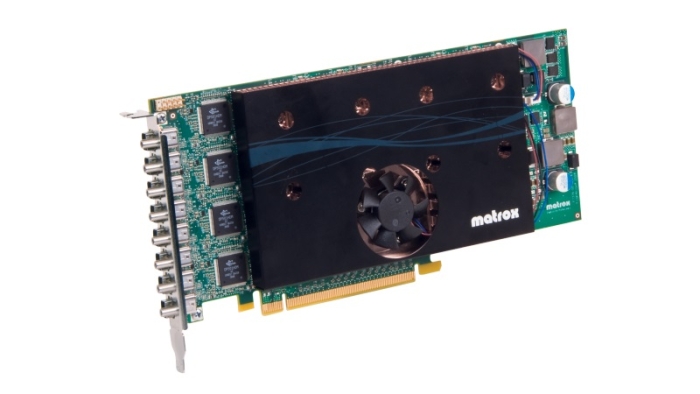

Matrox M9188 PCIe x16 Multi-Display Octal Graphics Card

PRODUCT OVERVIEW

The Matrox M9188 PCIe x16 multi-display octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort™ and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.

Matrox M9188 PCIe x16 at a Glance

• High-resolution eight DisplayPort or DVI monitor support: Support resolutions up to 2560x1600 (DisplayPort) and 1920x1200 (DVI) per output
• Native PCI Express® (PCIe) x16 performance: Maximum bandwidth to ensure best performance
• 2 GB of memory: For enhanced performance in demanding multi-monitor applications
• ATX form factor
• Stretched and independent desktop modes : Expand your desktop across multiple monitors or set each monitor independent of each other
• Edge Overlap: Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
• M-Series multi-card support¹ : Add an additional M-Series card into the same system to drive up to 16 displays from two cards
• Joined graphics card mode² : Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
• Matrox Clone : View a copy of one display on the other displays
• Wide enterprise flexibility: Unified driver package compatible with other Matrox products
• Matrox PowerDesk software: Easily configure and manage program windows on multiple monitors
• Multiple operating system support: Display drivers for Microsoft® Windows® 10 (32-bit, 64-bit; non-WHQL), Windows Server® 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista® (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux®³
