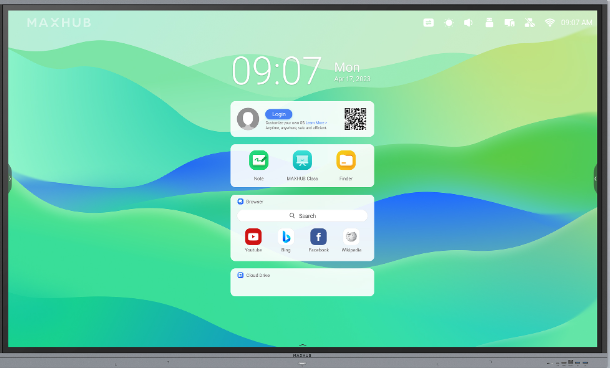

Maxhub E8621 86" 4K Ultra HD Educational Interactive Flat panel
SCREEN FEATURES:
- 4K Ultra HD Resolution (3840 x 2160) for crystal-clear and detailed visuals.
- Anti-glare Tempered Glass: Offers better visibility and durability, ensuring long-lasting performance.
- Multi-touch Technology: Up to 40 touch points, enabling collaborative and interactive experiences.
- Wide Viewing Angle: 178° horizontal and vertical viewing angles, maintaining image clarity from different positions.
- Built-in Android OS: For seamless access to apps and features without requiring external devices.
PRODUCT OVERVIEW
Stunning 4K Display for Immersive Learning
The MAXHUB E8621 features a massive 86-inch Ultra HD (3840 × 2160) screen with DLED backlighting and anti-glare tempered glass. It ensures lifelike visuals with a wide color gamut (72% NTSC), 1.07 billion colors, and high contrast. TÜV-certified low blue light and flicker-free technology protect students’ eyes during prolonged sessions.
Fast, Accurate Touch Experience
Equipped with advanced infrared touch technology, the E8621 supports up to 40 simultaneous touch points. The system offers ultra-low latency (≤10 ms) and exceptional handwriting accuracy (±1.5 mm), making it perfect for real-time collaboration, whiteboarding, and classroom interaction.
Powerful Smart System
The panel runs on Android 13, powered by a 2.0 GHz quad-core ARM Cortex-A55 processor with 8 GB RAM and 64 GB storage. For more demanding applications, it supports an optional Windows OPS module, offering dual-OS flexibility for both teaching and administration.
Classroom-Ready Sound & Hygiene Features
Integrated 2×20W stereo speakers ensure loud, clear sound that reaches every corner of a classroom. The panel also offers optional antibacterial protection on its surface, helping maintain hygiene in shared environments like schools and training centers.
Features:
-
Display: 86″ 4K UHD (3840 × 2160), Anti-glare DLED
-
Touch: Infrared, 40-point, ≤10ms response, ±1.5mm accuracy
-
OS: Android 13 + optional Windows via OPS
-
Processor: 2.0GHz Quad-Core ARM Cortex-A55
-
Memory: 8GB RAM, 64GB storage
-
Audio: 2 × 20W built-in speakers
-
Ports: HDMI in/out, USB 3.0, USB-C (65W), VGA, RJ45, RS-232
-
Network: Dual-band Wi-Fi + Gigabit Ethernet
-
Power: ≤500W (with OPS), ≤0.5W standby
-
Mounting: VESA 800 × 600 mm, Net Weight: 60.1 kg
-
Extra: Optional antibacterial surface, TÜV eye-care certified
| Product Name | Maxhub E8621 86" 4K Ultra HD Educational Interactive Flat panel |
|---|---|
| Weight | 60.100000 |
| Screen Size | 86" |
| Screen Size | 86-Inch |
| Screen Type | DLED |
| Backlight | LED Backlight |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,200:1 |
| Resolutions | 3840 x 2160 (4K UHD) |
| Color depth | 1.07 billion colors (10-bit) |
| Response Time | 5ms |
| Visual angle | 178° Horizontal / 178° Vertical |
| Panel Coatings | Antiglare Coating & Fingerprint-Resistant Coating |
| Power Supply | AC 100~240V 50/60Hz |
| Power Consumption | 200W |
| Max. Power Consumption | 350W |
| Standby Power Consumption | 0.5W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F). |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Language Support | Multiple Languages |
| Display Colors | 1.07 billion colors (10-bit) |
| Dimensions | 77.05 x 45.67 x 3.92 inches |
| Package Weight | 72 kg |
| Packaging Dimensions | 82.68 x 49.61 x 8.46 inches |
| Refresh Rate | 60Hz |
| Resolution | 3840x2160 (4K UHD) |
| CPU | 2.0GHz quad core ARM A55 |
| GPU | Mali-G52 MP2 |
| Ram / Rom | 8GB | 64GB |
| Operating System | Android 13.0 |
| Led life time | ≥ 50,000 Hours |
| Brightness | 400 nits |
| Viewing Angle | wide viewing angle of 178° |
| Backlight Adjustable | Yes |
| Built-In Speakers | Yes |
| Aspect Ratio | 16:9 |
| Manufacturer | MaxHub |
| Color | Grey |
| Country of Origin | China |
