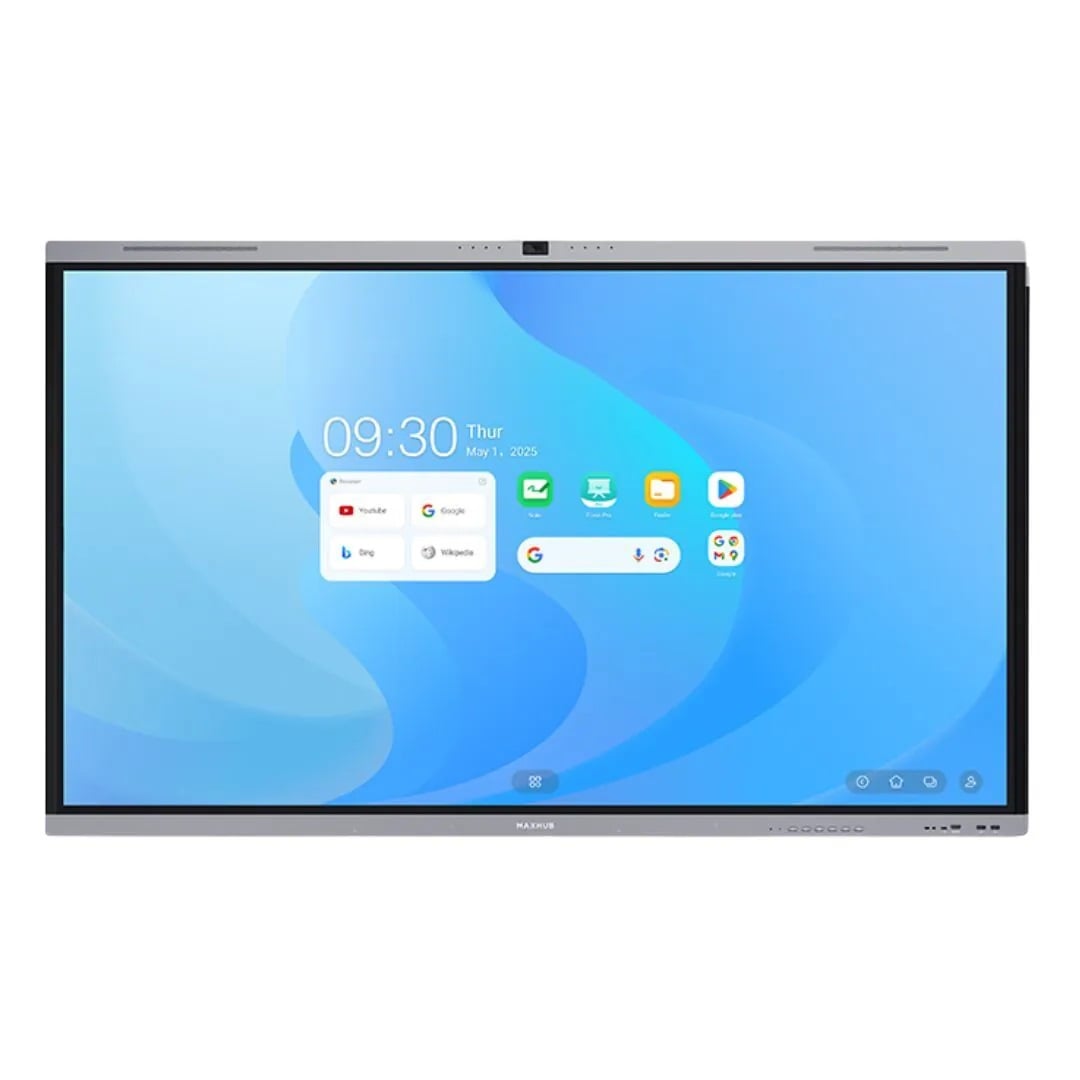

MAXHUB U8640 86-Inch 4K UHD 50-Point Touch Android 15 Interactive Flat Panel Display
SCREEN FEATURES:
-
86-inch 4K UHD interactive display with ultra-clear visuals and high brightness for professional classrooms and meeting rooms.
-
50-point multi-touch infrared screen enabling smooth simultaneous collaboration and precise annotation.
-
Built-in 50MP AI camera with wide-angle coverage for high-quality video conferencing and room tracking.
-
8-microphone array with long-range voice pickup for clear, noise-reduced audio capture across large rooms.
-
Android 15 (EDLA certified) system with 16GB RAM + 256GB storage for fast, stable, all-in-one smart operation.
PRODUCT OVERVIEW
MAXHUB U8640 Interactive Screen U4 Series
The MAXHUB U8640 Interactive Screen U4 Series is designed as a high-performance collaborative display solution for modern meeting environments. It combines a large-format UHD screen with advanced touch interaction capabilities. The system is engineered to support seamless communication in corporate, educational, and government setups. Its focus is on simplifying presentations while improving team collaboration efficiency.
Display and Visual Performance

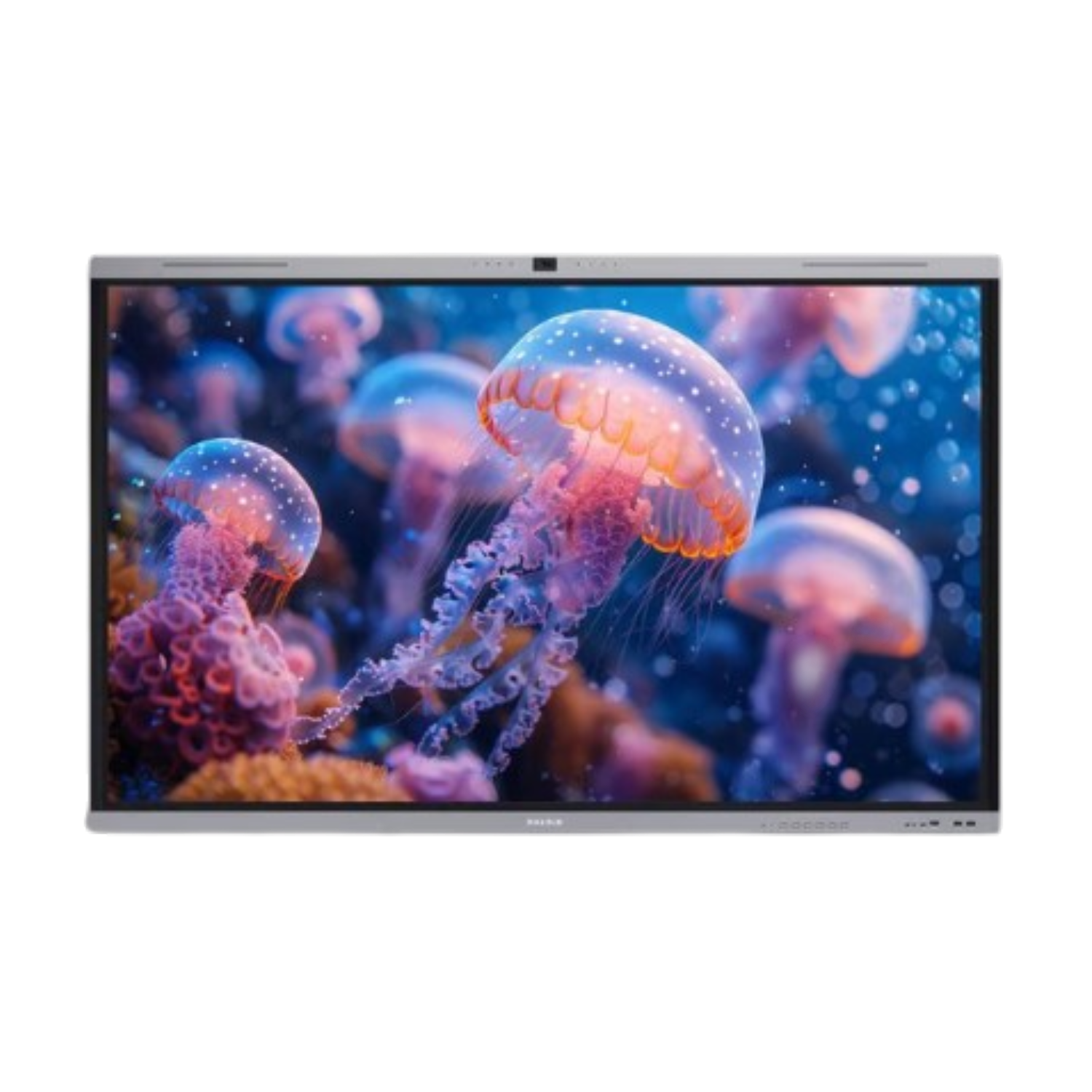

The screen delivers ultra-high-definition clarity with rich color reproduction and strong brightness levels. It ensures that content remains sharp and readable even in well-lit meeting rooms. Wide viewing angles allow multiple participants to engage without visual distortion. The display is optimized for professional presentations, data visualization, and multimedia content delivery.
Touch and Collaboration Experience
This interactive screen supports multi-touch functionality, enabling multiple users to write, draw, and interact simultaneously. The responsive touch system enhances real-time brainstorming and discussion sessions. Built-in annotation tools make it easy to highlight and edit content directly on the screen. It significantly improves engagement compared to traditional projection systems.
Connectivity and System Integration
The U4 Series is equipped with multiple connectivity options including wireless screen sharing and wired input interfaces. It integrates smoothly with laptops, mobile devices, and conferencing platforms. This flexibility reduces setup time during meetings and presentations. The system is designed to fit into existing IT infrastructures with minimal complexity.
Use Cases and Business Value
This interactive display is ideal for boardrooms, classrooms, training centers, and hybrid meeting environments. It enhances productivity by reducing dependency on multiple devices and external tools. Organizations benefit from faster decision-making and improved collaboration flow. Overall, it provides a strong return on investment through efficiency and engagement improvements.
| Product Name | MAXHUB U8640 86-Inch 4K UHD 50-Point Touch Android 15 Interactive Flat Panel Display |
|---|---|
| Weight | 51.900000 |
| Screen Size | 86" |
| Screen Size | 86-Inch |
| Backlight | DLED |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,200:1 (typ.) 50,000:1 (dynamic) |
| Resolutions | 3840 (H) × 2160 (V) |
| Color depth | 1.07B (10bit) |
| Response Time | 8ms |
| Visual angle | 178° (H/V) |
| Power Supply | AC 100~240V 50/60Hz |
| Power Consumption | 100W |
| Standby Power Consumption | ≤ 0.5W |
| Operating Temperature | 0°C~40°C |
| Operating Humidity | 10%~90%RH0% to 90% |
| Storage Temperature | -20°C~60°C |
| Language Support | Multiple Languages |
| Dimensions | 1957 × 1172.7 × 97 mm |
| Package Weight | 51.9 kg |
| Packaging Dimensions | 2110 × 1291 × 185 mm |
| Refresh Rate | 60Hz |
| Resolution | 3840x2160 (4K UHD) |
| Built-In Speakers | Yes |
| Aspect Ratio | 16:9 |
| Manufacturer | MaxHub |
| Color | Grey |
| Country of Origin | China |
