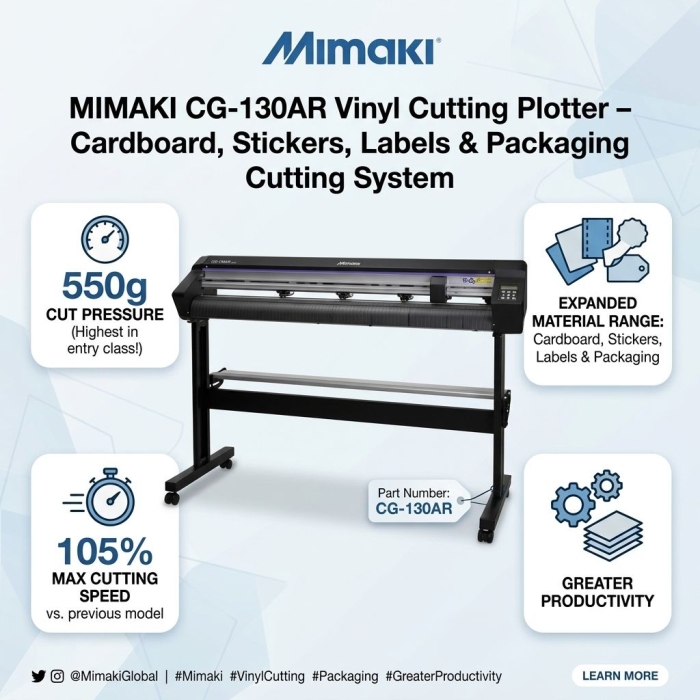

Mimaki CG-130AR 54" High-Speed Vinyl Cutter Plotter
Quick Overview
- Realizing a cut pressure of 550 g, which is the highest in the entry class, expanding the range of cuttable materials
- The maximum cutting speed is 105% of the previous model for greater productivity
- New lineup options for cardboard full cutting
- Easy to cut output from Windows plotter driver
- Equipped with an ID cut function, realizing efficient print & cut in seamless coordination with Mimaki's printers
- The "Mimaki Remote Access (MRA)" enables to check the machine operation status and operate the panel from a distance
PRODUCT OVERVIEW

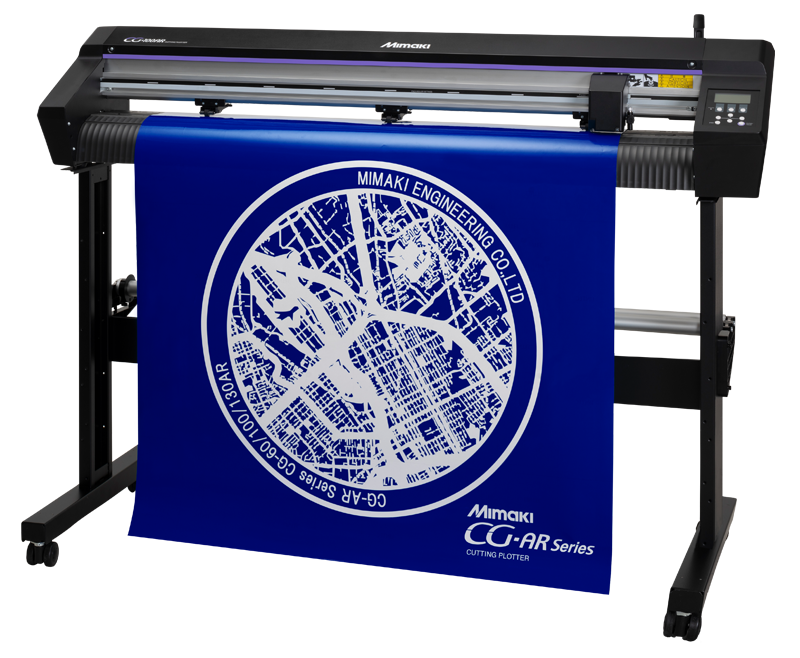

Mimaki CG-130AR 54" High-Speed Vinyl Cutter Plotter
The Mimaki CG-AR vinyl cutter is a top-of-the-line cutting solution for sign, graphics, and packaging professionals. This versatile, high-quality cutter offers fast and precise cutting for various materials, including vinyl, HTV, paper, and cardstock. With its advanced continuous registration mark detection technology, the Mimaki CG-AR plotter offers unmatched accuracy and ease of use. It is the perfect tool for creating stunning and intricate print and cut designs. Whether working on a small project or a large-scale production, the Mimaki CG-AR's speed and efficiency will help you get the job done quickly and easily. And with its intuitive software and user-friendly interface, even beginners can easily create professional-quality designs. So, if you're looking for a cutting-edge cutting solution that offers unmatched performance and versatility, look no further than the Mimaki CG-AR vinyl cutting machine.
- This versatile cutting machine is available in 29" and 61"
- Cut pressure of 550 g, which is the highest in the entry class of vinyl cutters.
- Continuous crop mark detection for contour cutting.
- Equipped with an ID cut function for efficient print & cut.
- Half-cut function for easier handling.
- This cutter is fast and flexible, with three selectable job speeds and the ability to load media from the front or back.
- Remote event notification function keeps you informed even when you're away from the machine.
- The Mimaki CG-AR Series is the perfect companion for any Mimaki roll-to-roll printer.
- FineCut9 and SimplePop software are included.
- CG60AR & Stand – Craft & Packaging Bundle, Sure Cuts A Lot software is included.
The Mimaki CG-AR vinyl cutting plotter is a versatile, high-quality cutting solution offering efficient cutting for several medias. Its speed and accuracy make it popular among sign, graphics, and packaging professionals.
| Product Name | Mimaki CG-130AR 54" High-Speed Vinyl Cutter Plotter |
|---|---|
| Media Thickness | 0.01” (.25mm) |
| Interface | USB, RS-232C, Ethernet |
| Plotter types | Roll-based |
| Cutting Width | 53.9” (1370 mm) |
| Cut Speed | 28.7”/s (73 cm/s) |
| Moving Speed | 40.5”/s (103 cm/s ) |
| Cut Pressure | 550g |
| Adjustable Speed Range | 1-73cm/s: 5cm/s step adjustment |
| Cutter Type | 1-73cm/s: 5cm/s step adjustment |
| Repeatability | +/- 0.2 mm / 2 M |
| Receive Buffer | 27MB standard, 17MB when sorting |
| Down Force Pressure | Cutter: 10-20g (2g step), 20-100g (5g step), 100-550g (10g step) | Pen: 10-20g (2g step), 20-100g (5g step), 100-150g (10g step) |
| Power Supply | AC 100 V – 240 V 1A 50/60Hz |
| Power Consumption | 168W or less | 228W or less | 228W or less |
| Operating Temperature | 5 – 35 degC (41 – 95 degF |
| Operating Humidity | 35 – 75 % Rh (Non-condensing) |
| Dimension | 1,830 mm x 580 mm x 1,150 mm |
| Weight | 43.000000 |
| Manufacturer | Mimaki |
| Country of Origin | Japan |
Product Datasheet
