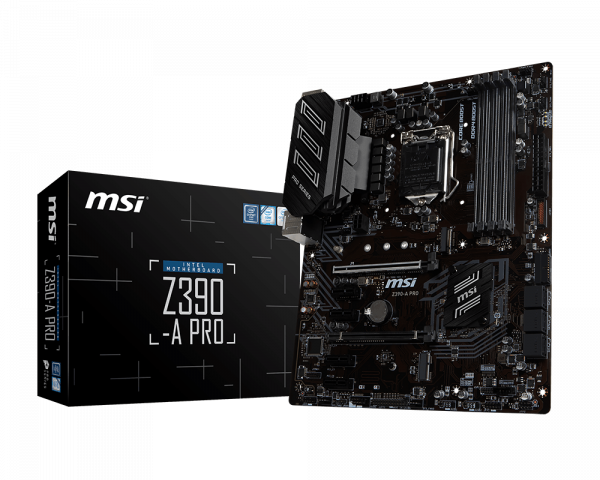

• supports 9th / 8th gen intel core / pentium celeron processors for lga 1151 socket


• Supports ddr4 memory, up to 4400(oc) mhz

  Turbo m.2: running at pci-e gen3 x4 maximizes performance for nvme based ssds.


• Set core power free: core boost, 8+4 pin cpu power connector, core boost, ddr4 boost


• Audio boost: reward your ears with studio grade sound quality.


• Extended heatsink design: msi extended pwm and enhanced circuit design ensures even high-end processors to run in full speed.


• Intel lan：premium network solution from intel for professional and multimedia use. Delivers a secure, stable and fast network connection.


• Multi-gpu: with steel armor pci-e slots. Supports 2-way amd crossfire


• intel turbo usb 3.1 gen2: powered by intel usb 3.1 gen2 controller, turbo usb ensures an uninterrupted connection with more stability and fastest usb speeds.

specification:

processor
supports 9th/ 8th gen intel® core™ / pentium® gold / celeron® processors for lga 1151 socket

Chipset
intel® z390 chipset

Memory
4 x ddr4 memory slots, support up to 128gb1
supports ddr4 4400(oc)/ 4300(oc)/ 4266(oc)/ 4200(oc)/ 4133(oc)/ 4000(oc)/ 3866(oc)/ 3733(oc)/ 3600(oc)/ 3466(oc)/ 3400(oc)/ 3333(oc)/ 3300(oc)/ 3200(oc)/ 3000(oc) / 2800(oc)/ 2666/ 2400/ 2133 mhz1
supports dual channel mode
supports non-ecc, un-buffered memory
supports intel® extreme memory profile (xmp)

Slots
2 x pcie 3.0 x16 slots(support x16/x4 mode)
4 x pcie 3.0 x1 slots
1 x m.2 slot with e key for integrated intel® wireless-ac(cnvi) module only

Onboard graphics
1 x vga port, supports a maximum resolution of 2048x1536@50hz, 2048x1280@60hz, 1920x1200@60hz
1 x dvi-d port, supports a maximum resolution of 1920x1200@60hz
1 x displayport, supports a maximum resolution of 4096x2304@60hz

Multi-gpu

supports 2-way amd® crossfire™ technology
storage
intel® z390 chipset
6 x sata 6gb/s ports1
1 x m.2 slot (key m)
supports up to pcie 3.0 x4 and sata 6gb/s, 2242/ 2260/ 2280/ 22110 storage devices
intel optane memory ready2
the sata2 will be unavailable when installing m.2 sata device into m.2 slot.Before using intel® optane™ memory modules, please ensure that you have updated the drivers and bios to the latest version from msi website.

Raid
intel z390 chipset
supports raid 0, raid 1, raid 5 and raid 10 for sata storage devices
usb
intel z390 chipset
2 x usb 3.1 gen2 (superspeed usb 10gbps) ports (1 type-a port and 1 type-c port on the back panel)
6 x usb 3.1 gen1 (superspeed usb) ports (2 type-a ports on the back panel, 4 ports available through the internal usb 3.1 connectors
6 x usb 2.0 (high-speed usb) ports (2 type-a ports on the back panel, 4 ports available through the internal usb connectors)1
the cnvi_1 and jusb2 share the same bandwidth. Please refer to page 32 for details.

Audio
realtek alc892 codec
7.1-channel high definition audio
lan
1 x intel i219-v gigabit lan controller

Internal connectors
1 x 24-pin atx main power connector
1 x 8-pin atx 12v power connector
1 x 6-pin atx 12v power connector
6 x sata 6gb/s connectors
2 x m.2 slots (1 m-key slot,1 e-key slot)
2 x usb 3.1 gen1 connectors (supports additional 4 usb 3.1 gen1 ports)
2 x usb 2.0 connectors (supports additional 4 usb 2.0 ports)
1 x 4-pin cpu fan connector
1 x 4-pin water pump connector
5 x 4-pin system fan connectors
1 x front panel audio connector
2 x system panel connectors
1 x chassis intrusion connector
1 x 4-pin rgb led connector
1 x serial port connector
1 x clear cmos jumper
1 x parallel port connector
1 x tpm module connector
1 x thunderbolt add-on card connector
1 x front oc button connector
