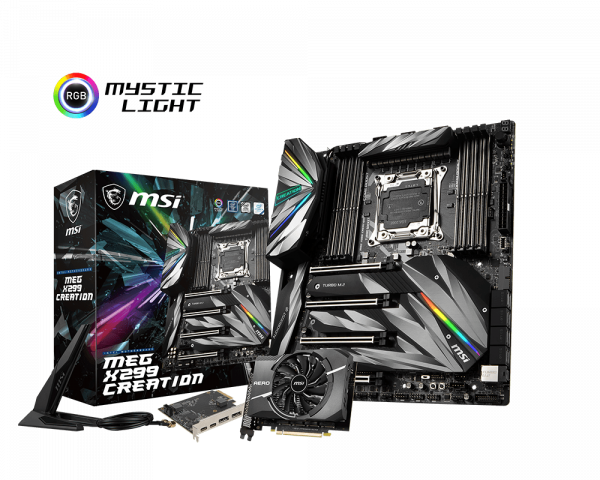

• Supports Intel Core X-series Processors Family
  Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4200+(OC)


• Maximum Power: 13+1 phases digital power with heat-pipe heatsink design


• Maximum Data Transfer: 2.5G LAN + Intel® Gigabit LAN with Intel® WIFI and bandwidth management


• Maximum Storage: 7 x Turbo M.2 with M.2 XPANDER-AERO


• Maximum Temperature Control: Full fan control with 8 PWM fan headers and 1 dedicated thermal sensor


• M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster


• Core Boost: With premium layout and full digital power design to support more cores and provide better performance


• Triple 8 Pin Power Supply: By providing triple 8 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance


• Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports both RGB and RAINBOW LED strip


• Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality


• DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost


• Multi-GPU: With Steel Armor PCI-E slots. Supports 4-Way NVIDIA SLI & 4-Way AMD Crossfire


• THUNDERBOLTM3: Exclusive expansion card offering dual DisplayPort and dual Thunderbolt 3 for the full 4K video experience.

Specifications:

PROCESSOR
Supports Intel Core X-Series Processor Family for LGA2066 Socket

CHIPSET
Intel X299 Chipset

MEMORY
8 x DDR4 memory slots, support up to 128GB
Quad channel memory architecture with the CPU that supports up to 4-channels DDR42
X-series processor support DDR4 4200(OC)/ 4100(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz1
Dual channel memory architecture with the CPU that supports up to 2-channels DDR42
X-series processor support DDR4 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz1
Supports Intel® Extreme Memory Profile (XMP)

SLOTS
4 x PCIe 3.0 x16 slots
Support x16/x0/x16/x8, x8/x8/x16/x8 mode with the 44-lane CPU.1
Support x16/x0/x8/x4, x8/x8/x8/x4 mode with the 28-lane CPU.1
Support x8/x0/x4/x4 mode with the 16-lane CPU.1
1 x PCIe 3.0 x1 slot
MULTI-GPU
Supports NVIDIA® SLI™ Technology
Supports AMD CrossFire™ Technology

STORAGE
Intel® X299 Chipset
8 x SATA 6Gb/s ports1,2
3 x M.2 slots (Key M)
M2_1 & M2_2 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices3
Intel® Optane™ Memory Ready for M2_1, M2_2 slots4
1 x U.2 port
Supports PCIe 3.0 x4 NVMe storage
The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_1 slot.The SATA2 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_2 slot.M2_3 slot and PCIe slots share the bandwidth.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® X299 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB
Intel® X299 Chipset
4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
6 x USB 2.0 (High-speed USB) ports(2 ports on the back panel, 4 ports available through the internal USB connectors)
ASMedia® ASM3142 Chipset
3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A port on the back panel, 1 Type-C internal connector)
ASMedia® ASM1074 Chipset
6 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel

AUDIO
Realtek® ALC1220 Codecs
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1 x Intel I219-V Gigabit LAN controller
1 x Realtek RTL8125-CG 2.5G LAN controller

WIRELESS
Intel® Wireless-AC 92601
Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz (160MHz) up to 1.73Gbps
Supports Bluetooth® 2.1, 2.1+EDR, 3.0,4.0, 5
Only support windows 10 64-bit

INTERNAL CONNECTORS
1 24-pin ATX main power connector
3x 8-pin ATX 12V power connectors
1x flat 4-pin ATX 12V power connector1
8x SATA 6Gb/s connectors
1x U.2 port
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
1x USB 3.1 Gen2 Type-C port
1x 4-pin CPU fan connector
1x 4-pin Water Pump connector
4x 4-pin system fan connectors
2x 4-pin extend system fan connectors
1x 3-pin Water Flow connector
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x 2-pin Thermal Sensors connector
1x Virtual RAID on CPU connector
1x Thunderbolt Add-on Card Connector
Provides additional power to PCIe x16 slots
