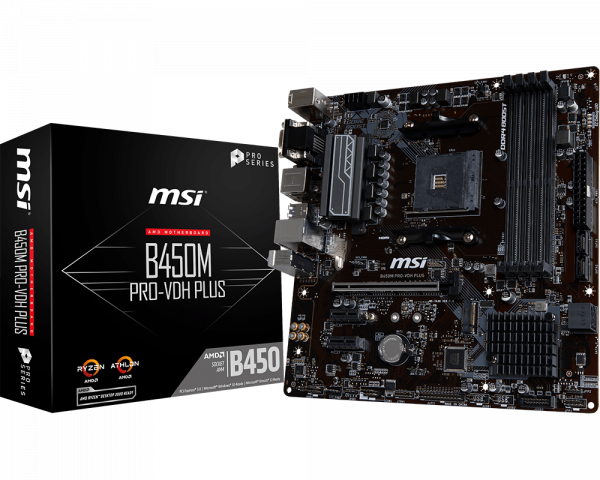

MSI AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2

• Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics / 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4


• Supports DDR4 Memory, up to 3466+(OC) MHz


• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.


• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.


• Audio Boost: Reward your ears with studio grade sound quality.
  EZ Debug LED: Easiest way to troubleshoot


• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.


• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.


• PCI-E Steel Armor: Protecting VGA cards against bending and EMI.

Specifications:

PROCESSOR Supports

AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
CHIPSET AMD® B450 Chipset

MEMORY
4 x DDR4 memory slots, support up to 64GB
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Supports
Dual Channel mode
non-ECC UDIMM memory

SLOTS
1 x PCIe 3.0 x16 slot
Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics

Processors
2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS
1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Maximum shared memory
2048 MB

STORAGE
AMD®B450 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices

USB

AMD® B450 Chipset
2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
AMD® processor
4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio
LAN
1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper

BACK PANEL PORTS
PS/2 Port
VGA Port
USB 2.0 Ports
USB 3.1 Gen1 Ports
LAN Port
HD Audio Connectors
DVI-D Port
HDMI Port

DIMENSIONS
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor
MOUNTING 8 mounting holes

OPERATING SYSTEM Support
Windows 10 64-bit
Windows 07 64-bit
