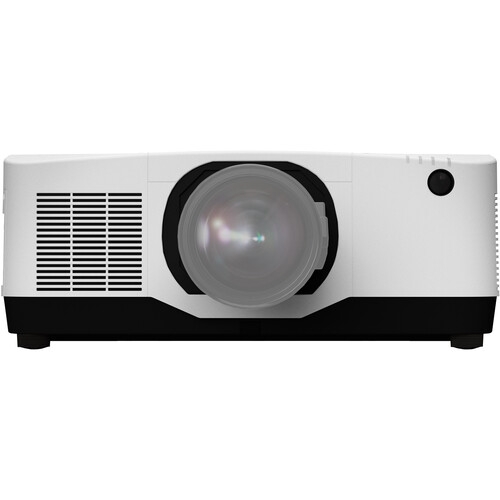

NEC PA1705UL WUXGA 15000 ANSI Lumens 3LCD Support 16:10 Aspect Ratio Large Venue Laser Projector
- Choose the product you want and add it to your cart.
- Proceed to checkout and fill out a short form.
- Click on "Tap Payment," and a secure window will pop up.
- Select Tabby as your payment option within the pop-up.
- Enter your mobile number and receive an OTP code.
- Complete additional verification, such as providing your EID & other details.
- Enter your Full Name and perform ID Verification.
- Finally, press "Buy Now" to complete the purchase.
The white NEC PA1505UL 14,000-Lumen WUXGA Laser 3LCD Projector is a high-brightness, professional installation projector designed for medium to large corporate and higher education spaces. Featuring a laser light source in an IP5X certified filter-free case, the NP-PA1505UL is built for long life with minimal maintenance. Enjoy installation flexibility with a full line of optional lenses, 360° orientation support, and full geometric correction
PRODUCT OVERVIEW
The white NEC PA1505UL 14,000-Lumen WUXGA Laser 3LCD Projector is a high-brightness, professional installation projector designed for medium to large corporate and higher education spaces. Featuring a laser light source in an IP5X certified filter-free case, the NP-PA1505UL is built for long life with minimal maintenance. Enjoy installation flexibility with a full line of optional lenses, 360° orientation support, and full geometric correction. Connect a variety of devices via 3G-SDI, HDBaseT, and HDMI 2.0 inputs with support for up to 4K60 video signals. Additionally, an HDBaseT output is available for daisy chaining in multi-projector setups with stacking and edge blending capability built in.
![]() |
![]() |
4K Ready
The NEC PA1705UL projector offers incredible 4K60 content display, ensuring that you can present high-resolution 4K media with maximum clarity and sharpness. Equipped with NEC’s proprietary high-performance video processing and scaling chip, this projector guarantees that critical image details are preserved without any degradation. The cutting-edge technology enhances the viewing experience by reproducing stunning visuals with lifelike colors and sharp resolution, making it an ideal choice for high-end conferences, large venues, or any event that requires superior image quality.
HDBaseT Connectivity
The NEC PA1705UL integrates HDBaseT technology, which significantly streamlines your installation process. With HDBaseT, a single network cable is all that's needed to transmit uncompressed full HD digital video, audio, Ethernet, power, and various control signals up to 327 feet. This integration greatly reduces infrastructure and labor costs, making the overall installation simpler, cleaner, and more efficient. There is no need to run multiple cables for different applications; everything is transferred over one cable, and this greatly reduces cable clutter. By using uncompressed HD video support, the projector ensures that the image quality remains exceptionally sharp across long distances.
![]() |
![]() |
Built-In Stacking and Edge Blending
The NEC PA1705UL features advanced stacking and edge blending capabilities, enabling you to create a much brighter and more immersive image for large venue projections. Stacking allows the use of multiple projectors to combine brightness up to 68,000 lumens, making this projector an ideal choice for large-format applications or high ambient light environments. The ability to stack projectors ensures no complete loss of image if one projector malfunctions, maintaining continuity and reliability during presentations. Additionally, edge blending merges several projected images into a single high-resolution, seamless display. This is particularly useful in creating ultra-wide screens or immersive visual experiences where clarity and continuity are crucial.
Geometric Correction
One of the standout features of the NEC PA1705UL is its geometric correction, which allows you to project images onto non-standard surfaces with precision. Unlike conventional projectors that can only project onto flat surfaces, this feature enables projection onto curved, spherical, cylindrical, or angled surfaces. Whether you’re creating artistic installations, projection mapping, or projecting onto unique architectural elements, this flexibility ensures that the image remains sharp, aligned, and distortion-free. The NEC PA1705UL gives you full control to adjust the image, allowing for creative installations and unconventional projections that maintain high-quality results.
NEC ProAssist Software
For professional installers and system integrators, NEC ProAssist software offers a comprehensive management tool that ensures an optimized projector installation. This intuitive software gives you complete control over the projector’s settings, including input switching, lens control, edge blending, and uniformity adjustments. The graphical user interface (GUI) simplifies the process of tuning the image to match your venue's specific needs, allowing you to easily adjust parameters like gamma correction and color balance. With ProAssist, you can efficiently manage multiple projectors simultaneously, ensuring the perfect image quality for any application, from large venue presentations to artistic projections.
Optional Lenses
Enjoy greater installation flexibility with motorized bayonet style lenses, providing quick and easy exchanges. Lens throw distances range from 4.25 to 141ft.
Throw Ratio | Lens Type | Model Number |
0.86-1.25:1 | Short/Standard-throw zoom lens | NP53ZL |
1.24-2.01:1 | Standard-throw zoom lens | NP54ZL |
1.98-3.95 | Long-throw zoom lens | NP55ZL |
Additional Features
-
WUXGA native resolution
-
Motorized lens shift
-
Motorized zoom and focus
-
3.5mm variable audio output
-
Instant on/off
-
Auto power off
-
360° roll-free installation
-
Portrait mode
-
Picture-in-picture
-
Picture-by-picture
-
Multi-display and tile matrix via HDBaseT daisy chain
-
Control over LAN or RS-232
-
Built-in wall color correction
Product Name | NEC PA1705UL WUXGA 15000 ANSI Lumens 3LCD Support 16:10 Aspect Ratio Large Venue Laser Projector |
---|---|
Manufacturer | NEC |
Projection System | 3LCD |
Native Resolution | WUXGA (1920x1200) |
Lumens | 15001-16000 |
Lumens | 16000 |
Lamp Life | Full Brightness: 20,000 Hours |
Aspect Ratio | 16:10 |
Contrast Ratio | 3,000,000:1 |
Keystone Correction | Vertical: ± 30° Horizontal: ± 40° |
Projection Distance | 0.7 – 50.9 |
Built-in Speaker's | YES |
Bluetooth | No |
Color | White |
Operating Temperature | 0 to 45°C |
Power Consumption | Full Brightness: 960 W Standby Mode (Lamp Off): < 0.4 W |
Weight | 28.70 Kg |
Dimensions (WxDxH) | 599.0 x 238.0 x 490.0 mm |
