PRODUCT OVERVIEW

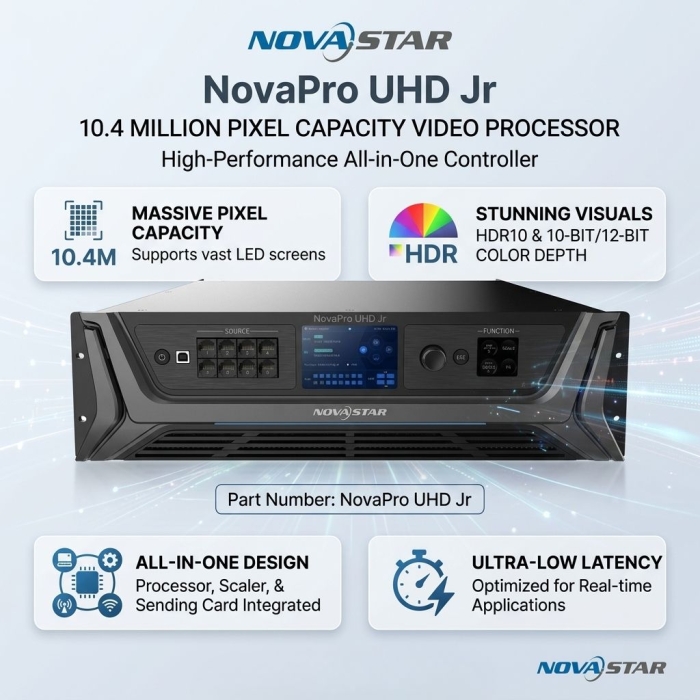

The NovaPro UHD Jr is NovaStar’s latest all-in-one LED display controller, designed to deliver high-performance video processing and transmission for professional applications. It integrates video processing capabilities with sending card functions, supporting a variety of input connectors including DP 1.2, HDMI 2.0, 12G-SDI, and DVI. The device handles resolutions up to 4K×2K at 60Hz and supports 8K×1K at 60Hz, making it suitable for large-scale, high-definition LED displays in environments such as stage control systems, conference sites, and exhibition venues .
In terms of output, the NovaPro UHD Jr offers 16 Neutrik Ethernet ports and 4 optical fiber ports, enabling a maximum loading capacity of 10.4 million pixels. This allows for a maximum width of 16K and a height of 8K, facilitating the creation of expansive and detailed visual displays. The device also supports DVI mosaic functionality, allowing up to four DVI inputs to be combined into a single input source, enhancing flexibility in signal management .
Advanced features of the NovaPro UHD Jr include HDR10 support, which enhances image quality by providing richer colors and finer details. The device also offers low-latency output, reducing the delay from sending card to receiving card by two frames when used with NovaStar Armor series receiving cards. Additionally, it supports decimal frame rates (23.98, 29.97, and 59.94), customized background settings, and personalized image scaling modes (full screen, pixel-to-pixel, and custom) .
For large-scale applications, up to four NovaPro UHD Jr units can be connected to create a super-large screen through image mosaic functionality. This is facilitated by NovaStar's V-Can smart control software, which enables richer image mosaic effects and simplifies operations. The device also supports up to 10 user presets, allowing for quick and convenient configuration changes .
Physically, the NovaPro UHD Jr is housed in a 3U standard chassis measuring 482.6 × 396.0 × 139.0 mm and weighs 6.3 kg. It operates on an AC power supply ranging from 100 to 240 V at 50/60 Hz, with a maximum power consumption of 70 W. The device is designed for indoor use with an IP20 rating and features active cooling to maintain optimal operating temperatures .
