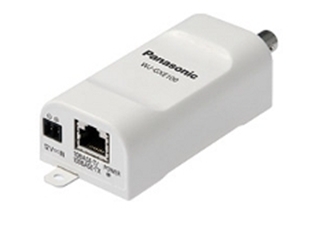

Panasonic 1-ch Network Video Encoder WJ-GXE100E

Full frame H.264 transmission

• H.264 and JPEG triple encoding: A total of 3 outputs, comprising of 2 H.264 outputs and 1 JPEG output, can be provided.

• Motion adaptive interlace/progressive conversion allows every frame to be clear even when the subject is moving.

• Open command conversion table for RS485 ensures the control of various manufacture’s PTZ camera.

• Camera title display: Up to 20 alphanumeric characters embedded in the image

• PoE. The power will be supplied by simply connecting a LAN cable. (IEEE802.3af compliant) 12 V DC power supply* is also available.

• Small size. And can be installed into the outdoor housing with a camera.

• Alarm sources including VMD, Command alarm, and Video loss

• VMD (Video Motion Detector) with 4 programmable detection areas

• Internet mode: H.264 images can be transmitted by over HTTP protocol.

• Multi-language GUI and setup menu: English, French, Italian, Spanish, German, Russian, Chinese, Japanese

• IPv4/IPv6 protocol supported

• Onvif compliant model
