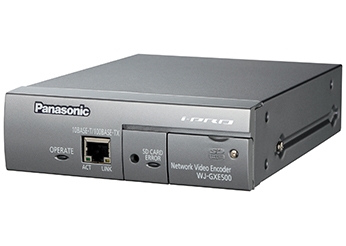

Panasonic 1-ch Network Video Encoder WJ-GXE500E

• Full frame H.264 transmission for each 4 channels

• Dual streams of H.264 (High profile) and JPEG at VGA / D1 image size

• Motion adaptive interlace/progressive conversion allows every frame to be clear even when the subject is moving.

• Compensates the picture degration caused by long-distance cable maintaining clear picture

• Coaxial communication ensures the control of Panasonic PTZ cameras via coaxial cable.

• Open command conversion table for RS-485 ensures the control of various manufacture’s PTZ camera.

• SD/SDHC Memory card slot for manual recording, alarm recording, and backup upon network failure (JPEG)

• Camera title display: Up to 16 alphanumeric characters embedded in the image

• Full duplex bi-directional audio allows interactive communication.

• PoE. The power will be supplied by simply connecting a LAN cable. (IEEE802.3af compliant)

• Small size. And can be installed into the rack with mounting brackets. (Option)

• Alarm sources including 3 terminal input, VMD, camera site alarm, video loss, and Panasonic alarm

• VMD (Video Motion Detector) with 4 programmable detection areas

• Face detection detect the position of human face, the information is sent by XML or video stream. (Ch1 only)

• Meta data for VMD is supplied to work with the WJ-ND400 playback VMD function.

Internet mode: H.264/MPEG-4 images can be transmitted by over HTTP protocol.

• Multi-language GUI and setup menu: English, French, Italian, Spanish, German, Russian (PAL) / English, French (NTSC) * Installation required except for English

• IPv4/IPv6 protocol supported
