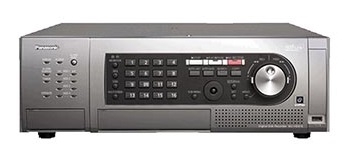

Panasonic Digital Disk Recorder WJ-HD616K/G

UniPhier® is the unified Panasonic platform LSI for versatile applications with high quality AV, real time processing and low power consumption.

Dual Full HD 1080i (1,920 x 1,080) display output for both Live and Live/Playback is possible. Real-time images of up to 960 ips (NTSC) / 800 ips (PAL) at 16ch on 2 monitors can be displayed.

This amazing new intelligence contributes to Superior Image of Super Dynamic 5. Plus, it offers efficient and reliable surveillance, preventing loss of vital scenes, and providing easy search and disk saving for recorder system.

High resolution detection area and advanced motion analyze algorithm enables accurate motion detection. Stay detection and direction detection are also possible.

Easy GUI

• Basic concept of WJ-HD316A maintained

• User interface becomes easier than WJ-HD316A - “From Left to Right” easy-to-understand i-Pro like design

Mouse Operation becomes available for Operation and Setup

• Mouse port is featured in front panel

• Internal 4 HDDs (accessible from front side)

• High scalability with 5 main units up to 80 camera inputs

• High scalability with main unit x 4 HDDs + 3 extension units x 9 HDDs up to 155 HDDs total

• Up to 4 Controllers (WV-CU650, WV-CU950) can be connected (PS•Data)

• WJ-HD316A can be easily replaced by WJ-HD716/616 • WJ-HD316A and WJ-HD716/616 can be used in the same multi-site system

Image transfer @QVGA resolution is optimized for narrow network bandwidth

• Independent from recording

• Only for live monitoring

• Up to 15 ips (NTSC), 12.5 ips (PAL) /ch * WJ-HD616 features up to 7.5 ips (NTSC), 6.3 ips (PAL) Image transfer @Frame/Field resolution is optimized for precise picture • Dependent on recording setting

• For both live & playback
