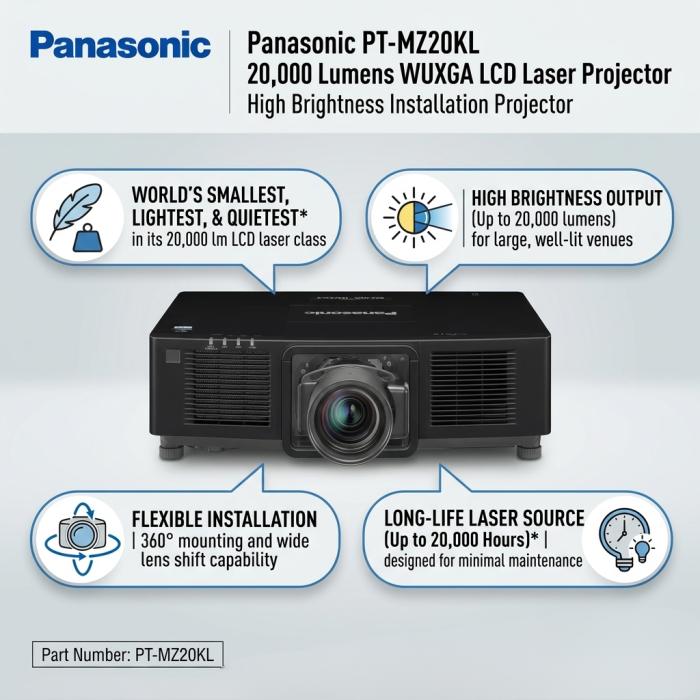

Panasonic PT-MZ20KL 20,000 Lumens WUXGA LCD Laser Projector High Brightness Installation Projector
Key Features:
-
World’s smallest, lightest, and quietest in its class among 20,000 lm LCD laser projectors.
-
High brightness output of up to 20,000 lumens for large, well-lit venues.
-
Long-life laser light source designed for up to 20,000 hours with minimal maintenance.
-
Flexible installation with 360° mounting support and wide lens shift capability.
-
Advanced connectivity and control including HDBaseT, LAN, and multiple remote management protocols.
PRODUCT OVERVIEW
PT-MZ20KL Series

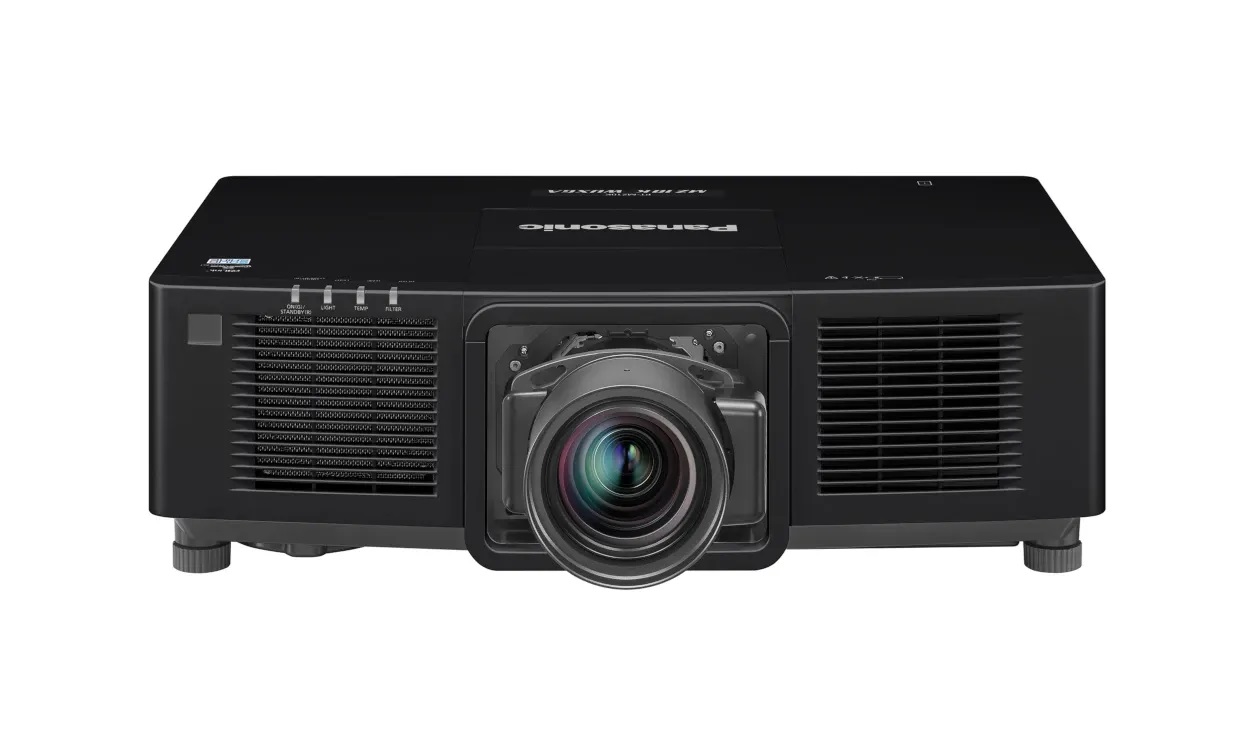

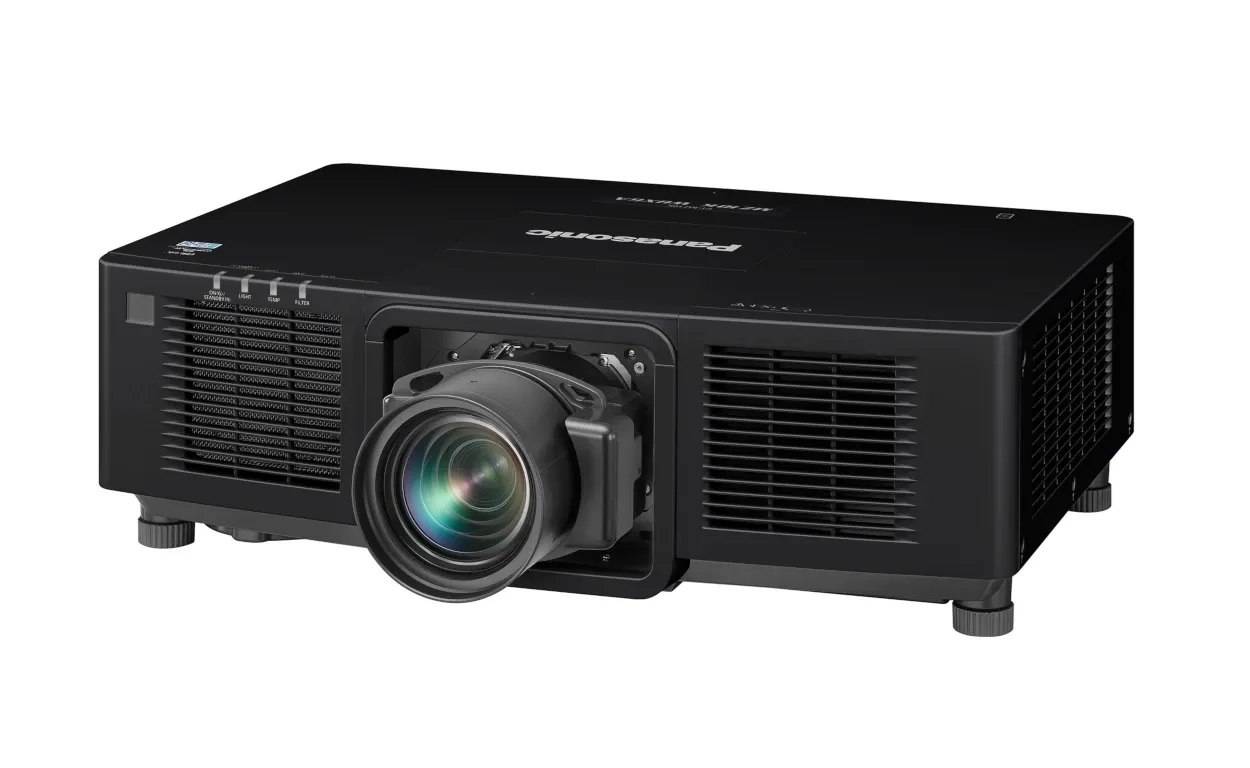

The Panasonic PT-MZ20KL is part of the advanced PT-MZ20 series designed for large-scale professional projection environments. It delivers an impressive 20,000 lumens brightness with WUXGA (1920 × 1200) resolution, ensuring sharp and vivid image reproduction even in well-lit venues. This model is engineered for auditoriums, conference halls, and large installations where clarity and scale are critical. It combines LCD laser technology with long operational stability for demanding commercial use.
Compact and Lightweight Design
Despite its high brightness output, the PT-MZ20KL is recognized as one of the most compact and lightweight projectors in its class. The design reduces installation burden while maintaining robust performance capabilities. Its approximately 23 kg body makes it easier to handle compared to traditional high-lumen projectors. The compact chassis also supports flexible mounting in various orientations. This makes it suitable for complex installation environments.
High-Performance Laser Light Source
The projector uses an advanced laser diode light engine that eliminates the need for traditional lamp replacements. This provides stable brightness over extended periods while reducing maintenance requirements. The light source is optimized for long operational life, making it ideal for continuous professional usage. It ensures consistent color reproduction and high image reliability. This technology significantly improves operational efficiency in large venues.
Installation Flexibility and Connectivity
The PT-MZ20KL offers extensive installation flexibility with support for 360-degree mounting and multiple lens options. It includes advanced lens shift, keystone correction, and digital link capabilities for seamless integration. Connectivity options such as HDMI, LAN, and HDBaseT enable compatibility with modern AV systems. This flexibility allows integration into both fixed installations and rental staging setups. It is designed to adapt to diverse professional environments.
| Product Name | Panasonic PT-MZ20KL 20,000 Lumens WUXGA LCD Laser Projector High Brightness Installation Projector |
|---|---|
| Manufacturer | Panasonic |
| Projection System | LCD |
| Native Resolution | WUXGA (1920x1200) |
| Lumens | 4001-5000 |
| Lumens | 20,000 Lumens (ISO)2 |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 3,000,000:1 |
| Keystone Correction | Vertical: ±45 ° (±5 ° with ET-EMU100, ±14 ° with ET-EMW200/ET-EMW300, ±22 ° with ETEMW400/ET-EMW500), Horizontal: ±40 ° (±0 ° with ET-EMU100, ±8 ° with ET-EMW200/ET-EMW300, ±15 ° with ETEMW400/ET-EMW500). When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] |
| Projection Size | 25.4 mm (1.0 in) diagonal (16:10 aspect ratio) |
| Throw Ratio | 1.22-2.26:1 |
| Bluetooth | No |
| Color | White |
| Power Consumption | 413 W |
| Weight | 3.583380 |
| Dimensions (WxDxH) | Approx. 650 x 185 x 440 mm (25 19/32˝ x 7 9/32˝ x 17 5/16˝) (excluding feet and protrusions),650 x 211 x 440 mm (25 19/32˝ x 8 5/16˝ x 17 5/16˝) (excluding protrusions, with feet at shortest position) |
| Package Weight | Approx. 23.0 kg (50.7 lbs) |
Product Datasheet
