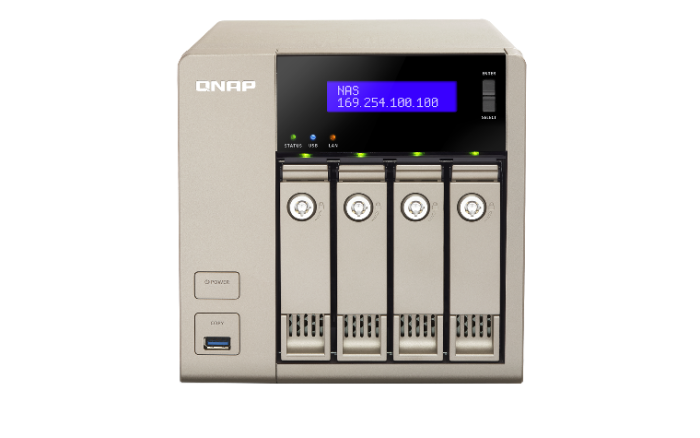

QNAP TVS-463 (TVS-463-8G) (AMD 2.4, 8GB, QTS 4.1)
Adorned with a box in gold color, the sophisticated TVS-463, featuring the easy-to-use QTS operating system, is a powerful, reliable, secure and scalable NAS solution designed for mission-critical and intensive business applications and to meet fast growing data storage needs. The TVS-463 supports 10GbE via optional PCI-E network expansion and delivers high performance with persistent throughput, providing a comprehensive storage solution for SMBs to build a reliable private cloud.
- 10GbE-ready, highly-efficient storage solution for HD video editing and sharing
- Enhanced data security with a high-performance hardware-accelerated encryption engine with AES 256-bit full NAS volume encryption and anti-virus
- Use the TVS-463 as a PC with exclusive QvPC Technology and 4K display support
- Run multiple Windows/Linux/Android-based virtual machines with the Virtualization Station
- Manage, share, and back up business data with Real-time Remote Replication (RTRR)
- NAS and iSCSI-SAN(IP-SAN) unified storage solution for server virtualization
- Supports VMware®, Citrix®, and Microsoft® Hyper-V and advanced virtualization features
- Transcode Full HD videos on-the-fly or offline with QNAP’s unique transcoding technology and hardware transcoding engine*
- Expand the total raw storage capacity up to 160TB with the economical UX-800P QNAP expansion enclosures
Ordering Information:
- TVS-463-4G: 4GB DDR3L-1600 RAM
- TVS-463-8G: 8GB DDR3L-1600 RAM
High performance & efficiency
The TVS-463 is equipped with the energy-efficient 64-bit AMD® quad-core 2.4 GHz processor with 4GB DDR3L-1600 RAM (upgradable to 16GB), SATA 6Gb/s, and 2 Gigabit LAN ports (expandable to max. 4 x GbE ports or 2 x GbE + 2 x 10GbE ports) for lightning-fast multi-tasking. The TVS-463 is a powerful NAS that delivers up to 425MB/s read & write speeds with 4 x GbE port configuration, and up to 1,481MB/s with 10GbE configuration. The TVS-463’s hardware-accelerated encryption engine with AES-NI provides unmatched encryption performance in its class, up to 691MB/s with AES 256- bit full NAS volume encryption, boosting system performance & security while ensuring the safety of sensitive business data stored in the TVS-463. The next-gen AMD Radeon™ HD graphics provides hardware-accelerated transcoding performance and dual HDMI outputs with brilliant high-definition multimedia content playback. When installed with the latest Wi-Fi 802.11ac USB network adapter, the TVS-463 can offer remarkably high speeds for transferring large amount of files and streaming bandwidth-consuming multimedia.
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS:
OS: QTS 4.1.1
Volume type: RAID 5; 4 x Plextor PX-256M5Pro SSD
Network environment: direct connection between NAS and PC, 1GbE LAN (MTU 1500); 10GbE with QNAP LAN-10G2T-D dual-port PCIe NIC (MTU 9000)
Client PCs:
Intel(R) Core(TM) i7-4770 3.40GHz CPU; DDR3 1600Hz 16GB; WD 1TB WD10EZEX; Intel Gigabit CT (MTU 1500); 10GbE with QNAP LAN-10G2T-D dual-port PCIe NIC (MTU 9000); Windows® 7 Professional 64bit SP1
IOMeter configuration: Transferring 8GB file continuously to/from 4/2 PCs for 3 minutes. Block size: 64KB for SMB2.0 (Throughput)
QTS - Simple and efficient
Thanks to the intuitive user interface of QTS, system operations of the TVS-463 are smooth and handy. Its intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency.
Qsirch – A smarter, faster way to search
Quickly and easily find documents, photos, videos, and music with Qsirch, QNAP’s new built-in NAS search application lets you find what you need by real-time, natural search. Simply type in as much as you know about what you are trying to find, including bits of the file name or even words/phrases in the document, and Qsirch will display a list of matches, complete with thumbnails, as you type. Qsirch even remembers your search history so you can quickly navigate to files you’ve previously searched for. Qsirch is a huge productivity boost – it greatly reduces the amount of time spent looking for files on the NAS so you can focus on other tasks.
Note: 2GB RAM (4GB or more RAM is recommended for optimum performance) and QTS 4.1 or newer firmware is required.
10GbE ready
The TVS-463 offers 2 inbuilt Gigabit Ethernet ports and supports 10 Gigabit high speed networks by installing a 10GbE network adapter. The 10GbE-ready TVS-463 delivers lightning-fast data throughput. Coupled with its large storage capacity potential, the TVS-463 is perfect for data centers to store big data and excel in fast data transmission, and for 10GbE home lab environment for technical professionals.
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS:
OS: QTS 4.1.1
Volume type: RAID 5; 4 x Plextor PX-256M5Pro SSD
Network environment: direct connection between NAS and PC, 1GbE LAN (MTU 1500); 10GbE with QNAP LAN-10G2T-D dual-port PCIe NIC (MTU 9000)
Client PCs:
Intel(R) Core(TM) i7-4770 3.40GHz CPU; DDR3 1600Hz 16GB; WD 1TB WD10EZEX; Intel Gigabit CT (MTU 1500); 10GbE with QNAP LAN-10G2T-D dual-port PCIe NIC (MTU 9000); Windows® 7 Professional 64bit SP1
IOMeter configuration: Transferring 8GB file continuously to/from 4/2 PCs for 3 minutes. Block size: 64KB for SMB2.0 (Throughput)
Use your TVS-463 as a PC with the exclusive QvPC Technology
QNAP’s exclusive QvPC Technology consolidates a number of high-end technologies including VM integration, multimedia transcoding, HDMI output, cloud integration and NAS connection technologies, allowing users to operate the TVS-463 as a PC when they plug in a keyboard, mouse and monitor. With QvPC Technology, the TVS-463 is transformed into a cost-effective device with PC functionalities for users to operate the system via "HybridDesk Station (HD Station)" on the screen to directly access stored data, run multiple applications using Windows/Linux/UNIX/Android-based VMs, surf the web on Google Chrome or Mozilla Firefox, watch Full HD videos with up to 7.1 channel audio with Kodi, and much more.
More screen to see: QvPC 4K Ultra HD display via HDMI
Capture more details with 4K resolution! Coupled with QvPC Technology, you can connect the TVS-463 to a 4K UHD monitor via HDMI to take advantage of 4K's impeccable image detail for increased productivity. Photographers can view sharper and clearer high-resolution images, and you can get a larger workspace with one monitor when managing virtual machines.
Note: 4K video playback and transcoding are not supported
Run additional operating systems on the TVS-463
With the support for AMD-V virtualization technology, the TVS-463 can operate the Virtualization Station, transforming the TVS-463 into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform that supports multiple operating systems, fast virtual machine (VM) creation, VM import/export, snapshot, and enables desktop operations on web browsers. With the easy-to-use interface, you can centrally manage all of the VMs created on the TVS-463 with minimal effort. You can also download VMs on demand from online VM markets and import them to the TVS-463 without any complex procedures.
Enjoy the best audiovisual experience with HD Station and dual HDMI
QNAP's HD Station integrates the powerful Kodi media player and web browser. The splendid user interface and support for crystal-clear 7.1-surround sound passthrough* brings smooth playback of Full HD videos**, providing you with the perfect home theater experience. The TVS-463 features dual HDMI outputs, allowing you to connect to two monitors to play the same content with concurrent 1080p HDMI displays. You can even watch YouTube videos, surf the web and manage the Turbo NAS using Google Chrome or Mozilla Firefox with multilingual keyboard input. The HD Station supports multi-tasking and user authentication so only authorized users can access data stored on the TVS-463 via HDMI monitors.
It is convenient & easy to control the HD Station. Turn your mobile devices into remote controls by installing the Qremote app, or use the QNAP RM-IR002 remote control and MCE remote controls via the built-in IR receiver of the TVS-463.
Note: 4K video playback and transcoding are not supported
*A receiver with HDMI support is required for decoding multi-channel surround sound.
** The quality of video and music delivery can vary according to hardware and network environments.
Learn more： HD Station
Real-time & offline HD video transcoding*
Powered by a hardware-accelerated transcoding engine, the TVS-463 delivers superior real-time Full HD (1080p) video transcoding to convert videos in common formats to universal formats that can be smoothly played on PCs, mobile devices and Smart TVs. The TVS-463 allows you to enjoy instant videos on multiple devices - even those that lack computing power or have limited file format support - without the need for complicated and time-consuming file conversion.
With the benefit of offline transcoding, if you can only connect to an Internet connection with limited/restricted bandwidth, you can still enjoy smooth videos by selecting a pre-rendered lower resolution to play the videos via File Station, Video Station, or the Qfile mobile app without affecting the TVS-463’s system performance running other applications. The TVS-463 also allows you to set a dedicated folder for automatic video transcoding.
Note: 4K video playback and transcoding are not supported
Cross-platform file sharing, centralized data storage
The TVS-463 supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Data, logs and ISO images of CDs and DVDs can be centrally stored on the TVS-463 and protected by an integrated antivirus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using an existing Windows AD server, LDAP server or built-in LDAP service. The TVS-463 supports SAMBA v4 and can act as a Windows domain controller to manage privilege settings..
Well-rounded backup solutions to secure data
QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with a solution to effortlessly back up data to the TVS-463. The USB 3.0 port on the front panel of the TVS-463 features a one-touch-copy function for you to instantly back up data from external drives to the TVS-463 with just one click, or alternatively to back up data from the TVS-463 to external drives. A wide range of third-party backup software such as Acronis® True Image and Symantec® Backup Exec are also supported.
Disaster recovery solutions brings peace of mind
The TVS-463 offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote Turbo NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency and reduced backup time. The TVS-463 also supports the rsync protocol to back up data to another remote server on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, Amazon Glacier, Microsoft® Azure, ElephantDrive®, Dropbox® and Google Cloud Storage.
Comprehensive security options
In the open network environment, business data might be exposed in potential hack. The TVS-463 provides numerous security options, such as encrypted access, IP blocking, and so on. Besides, IT administrators can control the access rights of each user to different folders, preventing unauthorized access to important files. The TVS-463 is validated with military level FIPS 140-2 AES 256-bit encryption, preventing the sensitive business data from unauthorized access and breach even if the hard disk drives or the entire system were stolen.
Storage for comprehensive virtualization applications
The TVS-463 supports VMware® and Citrix®, and is compatible with Microsoft® Hyper-V™ and Windows Server 2012, benefiting flexible deployment and management in the virtualization environments. The TVS-463 supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.
Powerful QNAP flexible volume
QNAP's flexible volume provides a more secure and flexible way to store NAS data. This next-generation volume offers powerful features such as storage pooling with multiple RAID group protection, thin provisioned volumes with space reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage Manager neatly presents tools and options for managing system storage which greatly simplifies the process of NAS capacity expansion and QNAP RAID expansion enclosure management.
Comprehensive surveillance solution providing 24/7 security
Surveillance Station is professional network surveillance Video Management System (VMS) that offers a user-friendly management interface, over 2,700 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile mobile app on your iOS® or Android™ devices to manage the monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TVS-463. The TVS-463 offers 4 free IP camera channels and you can expand up to 40 channels by purchasing additional licenses .
Seamless capacity expansion
The TVS-463 offers a high performance yet affordable storage solution to fulfill the needs of business in archiving rapidly-growing data & large files. The TVS-463 supports capacity expansion by connecting multiple QNAP expansion enclosure. With the QNAP scale-up solution, the raw storage capacity can be expanded on demand, making the TVS-463 an ideal file center for storage-intensive business applications such as video surveillance, data archiving, TV broadcast storage, and more.
The maximum raw storage capacity available by connecting RAID expansion enclosures:
| Turbo NAS Model | QNAP Expansion Enclosure | No. of RAID Expansion Enclosure | Total HDD No. (NAS + Enclosure) | Max. Raw Capacity (TB)* |
|---|---|---|---|---|
| TVS-463 | UX-800P | 2 | 20 | 160 |
| 1 | 12 | 96 | ||
| UX-500P | 2 | 14 | 112 | |
| 1 | 9 | 72 |
*The maximum capacity is calculated by using 8TB HDDs.
Easy system installation
You can flexibly choose different ways to set up the TVS-463, including using the Qfinder utility for setting up without a CD, using cloud installation via setup portal start.qnap.com with a unique Cloud Key, using mobile devices to scan the QR code sticker on the TVS-463 to quickly go over the installation, configuring the setup through the LCD display, and even setting up your TVS-463 locally without a network connection: just connect a keyboard, mouse and HDMI monitor to the TVS-463, and the NAS installation process can be completed effortlessly.
Install-on-demand apps to extend NAS functionality
Thanks to its x86 architecture, the TVS-463 can support more NAS Apps than ARM-based platforms. The built-in App Center provides various install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. In addition, QNAP’s development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless potential for the TVS-463.
High-quality construction and informative LCD display
The TVS-463 is adorned with a box in gold color, offering an exceptional choice with impressive sophistication. Built with metal frame and parts, the sleek and sturdy TVS-463 also features a newly-crafted heat sink that can exhaust excessive heat with its passive cooling. The LCD display panel on the TVS-463 provides quick system information making system management even easier.
Additional SMB-ready features
The TVS-463 supports various business applications as an all-in-one Turbo NAS with cost-efficiency.
|
The Turbo NAS supports FTP server to share large files, with user-defined settings including bandwidth limitation, number of connections, and write-only permissions.
|
|
The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.
|
| Product Name | QNAP TVS-463 (TVS-463-8G) (AMD 2.4, 8GB, QTS 4.1) |
|---|---|
| Display | No |
| Operating System | QTS 4.1 |
| Processor | AMD 2.4GHz quad-core x86 processor with Radeon graphics |
| Graphics | Intel HD Graphics 5300 |
| Memory | 8GB DDR3L-1600 x 1 (The system is shipped without HDD) |
| Ports & Connectors | LAN Port x2 x Gigabit RJ-45 Ethernet port (Onboard:2, expandable to max 4 ports via PCI-E NIC), PCIe Slot x1 (PCIe Gen2 x 4), 5 x USB 3.0 port (Front: 1, Rear: 4), HDMI x2 (Mirrored Display), 1.4a |
| Power Supply | ATX 250W, 110-240V AC, 50-60Hz, 5A |
| Power Consumption | S3 sleep: 2.26W HDD standby: 34.77W In operation:50.38W (with 4 x 2TB HDDs installed) |
| Dimensions (W x D x H) | 177(H)x 180(W) x 235(D) mm |
| Weight | 2.07 Kg |
| Manufacturer | QNAP |
| Color | Beige |
