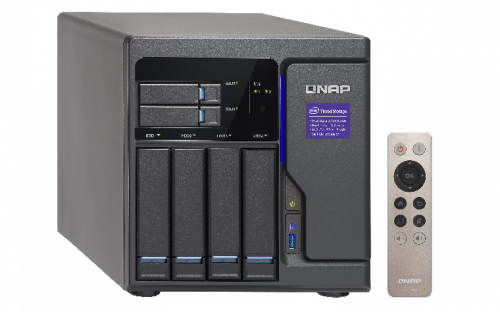

QNAP TVS-682-i3-8G 6-Bay TurboNAS, SATA 6G, Core i3-6100 3.7 GH, 8GB RAM
The TVS-682 features advanced hardware by adopting 6th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution.
The TVS-682 features advanced hardware by adopting 6th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-682 also supports smooth 4K @30Hz video transfer, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-682 presents an ideal choice for a complete business-ready storage solution.
6th Generation Intel® processors, extraordinary performance
The TVS-682 is powered by high-performance 6th Generation Intel® multi-core processors with options including Pentium® and Core™ i3, increasing system performance by 20% - 30% compared with previous generations. It greatly enhances the efficiency of CPU-demanding applications such as virtualization, real-time 4K @30Hz video playback, and serving large numbers of simultaneous connections.
Advanced hardware for greater efficiency
High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios are three distinctive cornerstones for achieving optimum performance.
Brief Specifications
6-Bay TurboNAS, SATA 6G, Core™ i3-6100 3.7 GH, 8GB RAM, 4-LAN, 10G-ready, iSCSI, RAID 0,1, 5, 6, 10, 5+spare, 6+spare, 10+spare, global hot spare, max 32 GB RAM, PCIe expansion slot x2, 250W single power supply.
| Product Name | QNAP TVS-682-i3-8G 6-Bay TurboNAS, SATA 6G, Core i3-6100 3.7 GH, 8GB RAM |
|---|---|
| Display | No |
| Operating System | QTS 4.2 |
| Processor | Intel® Core™ i3-6100 3.7 GHz dual-core processor |
| Graphics | Intel HD Graphics 5300 |
| Memory | 8 GB DDR4 RAM (4 GB x 2) |
| Ports & Connectors | 1 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear) 4 x GbE port (10GbE and 40GbE are supported with the purchase and installation of compatible network adapters) |
| Power Supply | Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W |
| Power Consumption | Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W |
| Dimensions (W x D x H) | 231.9 (H) x 224.9 (W) x 319.8 (D) mm |
| Weight | 3.492661 |
| Manufacturer | QNAP |
| Color | Black |
