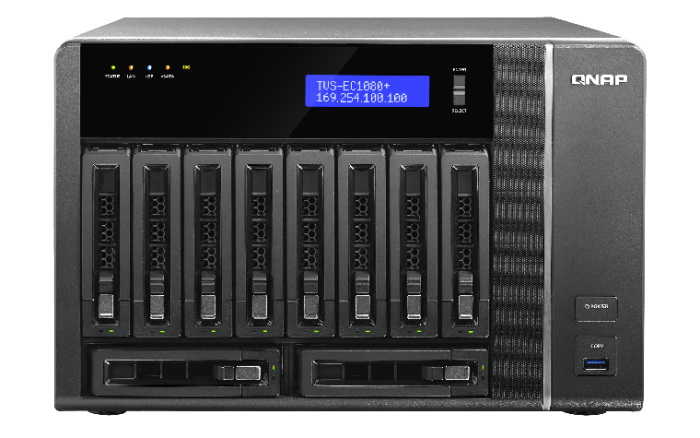

QNAP TVS-EC1080+ (TVS-EC1080-E3-32G) (Xeon E3, 32GB, QTS 4.1)
- 2,000+ MB/s throughput and 223,000+ IOPS
- Built-in 256GB mSATA modules and up to 4 SSDs for caching, beneficial to IOPS demanding applications
- Enjoy 4K2K UHD videos HDMI local display and transcoding with new HD Station 2.0
- Monitor and manage multiple QNAP Turbo NAS with Q’center Multi-NAS management system
- Use the TVS-EC1080+ as a PC with exclusive QvPC Techonology
- Virtualization-ready, centralized data storage, backup, sharing and disaster recovery
Breakthrough performance
The TVS-EC1080+ supports 6Gbps hard drives driving over 2,000 MB/s throughput and 223,000 IOPS*. Featuring with Intel® Xeon® E3-1245 v3 3.4GHz quad-core processor or above and 32GB DDR3 RAM, the TVS-EC1080+ greatly enhances efficiency of CPU-consuming tasks and serves more concurrent tasks at the same time.
Tested in QNAP lab. Figures could vary by environments.
Testing Environment:
2 Client PC configuration: Intel(R) Core(TM) i7-2600 CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit, Dual-port Intel X520 10GbE Server Adapter, IOMeter sequential read and write.
NAS configurations: OCZ Vertex4 VTX4-25SAT3-128G SSDs with RAID 6 configuration, QNAP LAN-10G2T-U dual-port 10GBase-T network adapter*1
Internal cache port for IO acceleration
The TVS-EC1080+ features pre-installed 256GB mSATA modules, and up to 4 SSDs can be used for caching, remarkably boosting the IOPS performance of storage volumes. It is perfect for improving overall workflow of random IOPS demanding applications such as database and virtualization. The internal cache port design reserves the space of hard drive tray for more storage capacity.
10GbE ready
The TVS-EC1080+ features two inbuilt 10 Gigabit ports to deliver 10 Gigabit high speed network. The 10GbE-ready TVS-EC1080+ delivers lightening data throughput. Coupled with the support for large storage capacity, the TVS-EC1080+ is perfect for data centers to storage big data and excel in fast data transmission, and for editing large size videos on-the-fly without transferring the videos between the TVS-EC1080+ and desktop computers.
4K2K Ultra-High-Definition ready
See even more detail with 4K2K! The TVS-EC1080+'s high quality hardware allows you to smoothly play 4K2K videos on an HDTV with Kodi local display through HDMI without heavily consuming system resources. Featuring Intel® HD Graphics P4600, the TVS-EC1080+ delivers superior real-time 4K2K (H.264) and 1080p video transcoding to convert videos to universal formats that can be smoothly played on PCs, mobile devices and Smart TVs. It allows multiple devices to simultaneously view different videos stored on the TVS-EC1080+ with on-the-fly hardware accelerated transcoding, saving your time to convert videos into different formats for different devices.
With the benefit of offline transcoding, even when you can only connect to an low-speed Internet connection, you can still enjoy smooth video playback via File Station, Video Station, and the Qfile mobile app by selecting a pre-rendered lower resolution video, saving system resources of the TVS-EC1080+ for other applications. The TVS-EC1080+ also allows you to set a dedicated folder for automatic video transcoding.
QTS - Simple and efficient
Thanks to QTS's intuitive user interface, system operations of the TVS-EC1080+ are smooth and handy. Its intelligent desktop allows you to find the desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.
Qsirch – A smarter, faster way to search
Quickly and easily find documents, photos, videos, and music with Qsirch, QNAP’s new built-in NAS search application lets you find what you need by real-time, natural search. Simply type in as much as you know about what you are trying to find, including bits of the file name or even words/phrases in the document, and Qsirch will display a list of matches, complete with thumbnails, as you type. Qsirch even remembers your search history so you can quickly navigate to files you’ve previously searched for. Qsirch is a huge productivity boost – it greatly reduces the amount of time spent looking for files on the NAS so you can focus on other tasks.
Note: 2GB RAM (4GB or more RAM is recommended for optimum performance) and QTS 4.1 or newer firmware is required.
Monitor and manage multiple NAS with Q'center
Q'center turns your TVS-EC1080+ into a central management system to manage multiple Turbo NAS units. After installing Q'center in QTS App Center, you can use the TVS-EC1080+ to centrally manage multi-site Turbo NAS for monitoring system logs and managing firmware update and maintenance, and enjoy major benefits including ease-of-use, cost-efficiency, convenience and flexibility. Managing multiple Turbo NAS becomes so easy and efficiently.
Use your TVS-EC1080+ as a PC with exclusive QvPC Technology
QNAP's exclusive QvPC Technology consolidates a number of high-end technologies including VM integration, multimedia transcoding, HDMI output, cloud integration and NAS connection technologies, allowing users to operate the TVS-EC1080+ as a PC when they plug in a keyboard, mouse and monitor. With QvPC Technology, the TVS-EC1080+ is transformed into a cost-effective device with PC functionalities for users to directly access stored data, run multiple applications using Windows/Linux/UNIX/Android-based VMs, surf the web on Google Chrome or Mozilla Firefox, watch Full HD videos with up to 7.1 channel audio with Kodi, monitor Surveillance Station in real time with local display, and much more. QvPC Technology allows you to directly manage and operate the virtual machines on the TVS-EC1080+ to fulfill various business applications, such as application services server (e.g. Web Server or Exchange Server) or different corporate managing systems.
Powerful QNAP flexible volume
QNAP flexible volume provides a more secure and flexible way to store the NAS data. This next generation volume offers powerful features such as storage pooling with multiple RAID group protection, thin provisioned volume with space reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage Manager neatly presents tools and options for managing system storage which simplifies the process of NAS capacity expansion and QNAP RAID expansion enclosure management.
Cross-platform file sharing, centralized data storage
The TVS-EC1080+ supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Data, logs and ISO image of CDs and DVDs can be centralized store in the NAS and protected by integrated antivirus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using existing Windows AD server, LDAP server or NAS build-in LDAP service. The TVS-EC1080+ supports SAMBA v4 and can act as a Windows domain controller to manage privilege settings.
Well-rounded backup solutions to secure data
The TVS-EC1080+ offers well-rounded backup solutions as a reliable backup center. QNAP NetBak Replicator supports scheduled and real-time data backup on Windows OS. Mac Time Machine is also supported to provide Mac OS X users with an effortless solution to back up data to the TVS-EC1080+.
Disaster recovery solutions brings peace of mind
The TVS-EC1080+ offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote Turbo NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency and reduced backup time. The TVS-EC1080+ also supports rsync protocol to back up data to another remote server on scheduling basis. Besides, data can be backed up to cloud storage, such as Amazon® S3, Amazon Glacier, Microsoft® Azure, ElephantDrive®, Symform®, Dropbox® and Google Cloud Storage, and restored to the TVS-EC1080+ anytime.
Comprehensive security options
In the open network environment, business data might be exposed in potential hack. The TVS-EC1080+ provides numerous security options, such as encrypted access, IP blocking, and so on. Besides, IT administrators can control the access rights of each user to different folders, preventing unauthorized access to important files. The TVS-EC1080+ is validated with military level FIPS 140-2 AES 256-bit encryption, preventing the sensitive business data from unauthorized access and breach even if the hard disk drives or the entire system were stolen.
Storage for comprehensive virtualization applications
The TVS-EC1080+ supports VMware® ESXi, Citrix® XenServer, Microsoft® Hyper-V™ and Windows Server 2012, benefiting flexible deployment and management in the virtualization environments. The TVS-EC1080+ supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications.
Run multiple OS' on the TVS-EC1080+
The Virtualization Station transforms the TVS-EC1080+ into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform supporting multiple operating systems, fast virtual machine creation, virtual machine import/export, snapshot, and enables desktop operations on web browser. With the easy-to-use interface, you can centrally manage all virtual machines created on the TVS-EC1080+ with least efforts. Furthermore, you can download VMs on demand from the online VM markets and import them to TVS-EC1080+ to use directly without any complex procedure.
Highly-efficient storage solution for video editing
Digital film and video production produces volumes of data that require high performance RAID storage with sustainable throughput to balance with the demanding output of video editing. The TVS-EC1080+ fulfills storage and video editing needs with a high speed 10GbE network interface. Digital videos can be quickly stored and edited on the TVS-EC1080+ directly over the network.
File synchronization across multiple devices
The Qsync utility turns your TVS-EC1080+ into a safe data center for file synchronization with large storage capacity. Any file uploaded to the TVS-EC1080+ will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most updated files on different devices. Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration.
Comprehensive surveillance solution with 24/7 security
The TVS-EC1080+ Surveillance Station is a professional surveillance solution with a wide range of over 2,700 compatible IP camera models and expandable IP camera channel licenses. It supports real-time monitoring, video and audio recording and playback with flexible options to customize. You can also install the Vmobile app on your iOS® or Android™ mobile devices to manage the monitoring channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TVS-EC1080+. The TVS-EC1080+ offers 8 free IP camera channels and users can flexibly expand channels by purchasing additional licenses.
Additional SMB-ready features
The TVS-EC1080+ supports various business applications as an all-in-one Turbo NAS with cost-efficiency.
|
The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission.
|
|
The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.
|
|
Click here to learn more other business features.
Install-on-demand apps extend NAS features
The TVS-EC1080+ has built in App Center providing various install-on-demand apps developed by QNAP and third-party developers, including backup/sync, business, content management, communications, download, entertainment, and so on. It's also a central place to manage and update installed apps. Besides, QNAP's development platform brings forth the open-source spirit to welcome program developers to develop various applications, adding values to the TVS-EC1080+ for extensive opportunities.
| Product Name | QNAP TVS-EC1080+ (TVS-EC1080-E3-32G) (Xeon E3, 32GB, QTS 4.1) |
|---|---|
| Display | No |
| Operating System | QTS 4.1 |
| Processor | Intel Xeon E3-1245 v3 3.4 GHz Quad Core Processor or above |
| Graphics | Intel HD Graphics 5300 |
| Memory | 32 GB DDR3 RAM (non-ECC Memory) (The standard system is shipped without hard drives) |
| Ports & Connectors | LAN Port 2 x 10 Gigabit RJ-45 Ethernet port ( Pre-installed in PCIe slot), 4 x 1 Gigabit RJ-45 Ethernet port (on board), 3x USB 3.0 port (1 front, 2 rear), 6x USB 2.0 port (rear) |
| Power Supply | Input: 100-240V AC, 50/60Hz, Output: 350W |
| Power Consumption | Sleep mode: 68W In Operation: 130W (with 10 x 1TB hard drives installed) |
| Dimensions (W x D x H) | 217.5(H) x 327(W) x 321.2(D) mm |
| Weight | 5.68 Kg |
| Manufacturer | QNAP |
| Color | Black |
