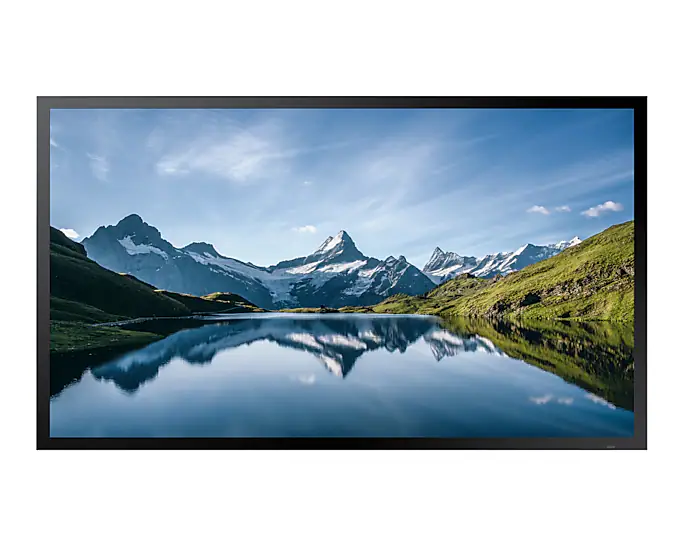

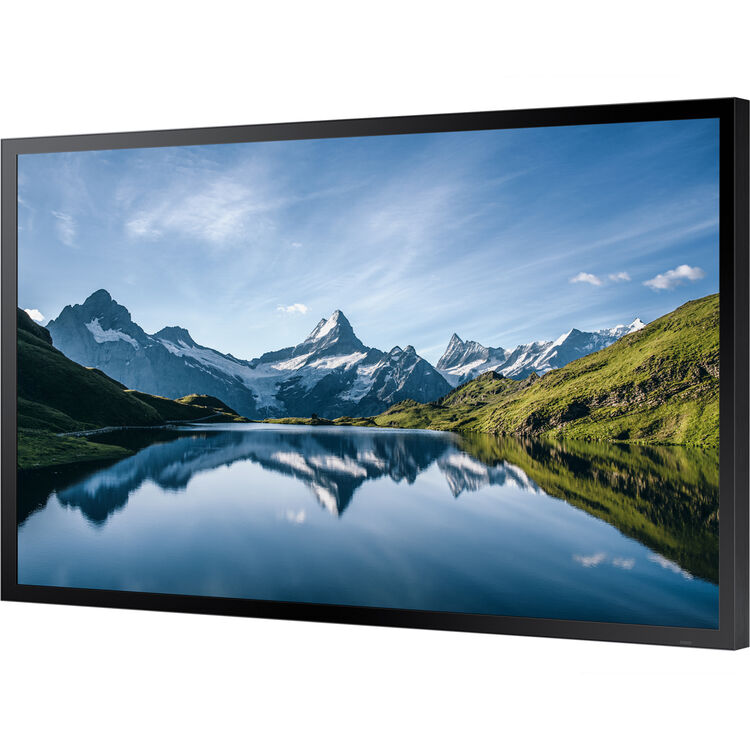

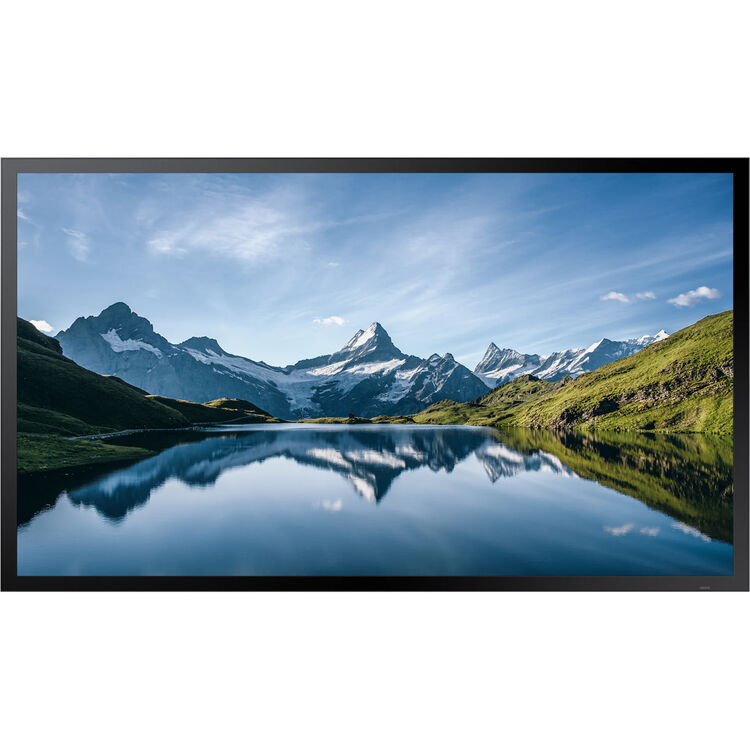

Samsung OH46B-S 46" FHD Temper Protection Magic Glass Ultra Visibility Outdoor Digital Signage Display
Quick Overview
- Outdoor Rated IP56 Certified
- LAN & RS-232 Control Options
- 2 x HDMI | 1 x HDBaseT
- 6000:1 Static Contrast Ratio
- 3500 nits Brightness | Anti-Reflective
- 24/7 Duty Cycle | Portrait & Landscape
- Embedded MagicINFO Player S7
Product Description
Samsung OH46B-S 46” Outdoor Digital Signage Display
The Samsung OH46B-S 46” FHD Outdoor Digital Signage Display is a high-performance 46-inch Full HD outdoor display engineered for extreme environments, delivering 24/7 visibility, superior durability, and exceptional image clarity for public and commercial applications.
Built for Maximum Outdoor Impact
Designed for transportation hubs, retail storefronts, corporate exteriors, and public information systems, the Samsung OH46B-S ensures uninterrupted content delivery in demanding outdoor environments.
Its industrial-grade engineering combines ultra-high brightness, advanced thermal management, and reinforced protection to guarantee stable performance in sunlight, rain, dust, and extreme temperatures.
Key Advantages of OH46B-S
Every component is engineered to ensure visibility, durability, and operational stability in harsh outdoor conditions.
Engineered for Real-World Outdoor Use
From content clarity to system resilience, every detail is optimized for high-traffic outdoor communication.
Technical Specifications
Display
46-inch Full HD
High Brightness Outdoor Panel
Optimized for sunlight visibility
Protection
IP56 Certified
Dust & Water Resistant
Anti-Glare Tempered Glass
Performance
3,500+ nits brightness
Auto brightness adjustment
24/7 continuous operation
System
Tizen OS
MagicINFO compatibility
Secure content management
Deploy High-Impact Outdoor Messaging
The Samsung OH46B-S is built for organizations that demand visibility, durability, and performance in any outdoor environment.
Request a Quote| Product Name | Samsung OH46B-S 46" FHD Temper Protection Magic Glass Ultra Visibility Outdoor Digital Signage Display |
|---|---|
| Weight | 40.500000 |
| Screen Size | 46" |
| Screen Size | 46" |
| Backlight | LED |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4,000:1 (* IPS - 1,200:1) |
| Resolutions | 1920 x 1080 |
| Power Supply | AC 100 - 240 V, 50/60 Hz |
| Power Consumption | 530 W |
| Operating Temperature | 0℃~ 50℃ |
| Operating Humidity | 10~80% |
| Language Support | Multi Langauge |
| Dimensions | 1069 x 623.6 x 85 mm |
| Packaging Dimensions | 1156 x 713 x 200 mm |
| Resolution | 1920x1080 (Full HD) |
| Operating System | Tizen 6.5 (VDLinux) |
| Brightness | 3,500 nit (peak 4,000 nit) |
| Viewing Angle | 178/178 |
| Backlight Adjustable | Automatic |
| Built-In Speakers | No |
| Aspect Ratio | 16:9 |
| Connectivity | 1. RS232C IN / Out 2. Audio Out 3. USB 4. RJ45 (LAN Out) 5. HDBT (LAN In) 6. HDMI In 1 7. HDMI In 2 8. DP In (UHD 60Hz) |
| Manufacturer | Samsung |
| Color | Black |
| Country of Origin | Taiwan, Province of China |
