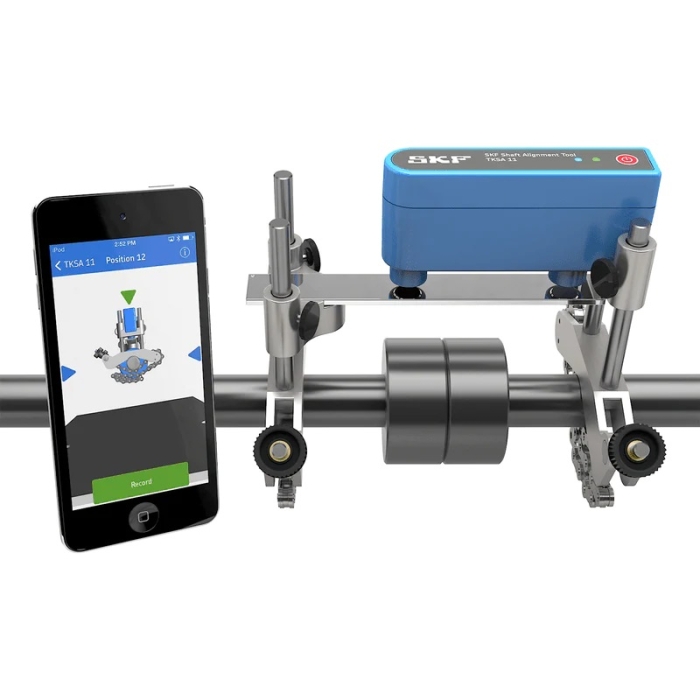

SKF TKSA 11 Innovative Shaft Alignment Tool Easier And More Affordable
Actual Stock Can Be Confirmed After Placing the Order.
SKU
TKSA11
AED 11,645
AED 11,090
Pay 4 interest-free payments of AED 421.00.Learn more
The SKF TKSA 11 is an innovative shaft alignment tool that uses smartphones and tablets and intuitively guides the user through the shaft alignment process.. With a focus on the core alignment tasks, the TKSA 11 is designed to be a very easy-to-use instrument is especially suitable for alignment learners and compact applications. The SKF TKSA 11 is the first instrument on the market that uses inductive proximity sensors, enabling accurate and reliable shaft alignment to be affordable for every budget.
PRODUCT OVERVIEW
New technology makes shaft alignment easier and more affordable
The SKF TKSA 11 is an innovative shaft alignment tool that uses smartphones and tablets and intuitively guides the user through the shaft alignment process.. With a focus on the core alignment tasks, the TKSA 11 is designed to be a very easy-to-use instrument is especially suitable for alignment learners and compact applications. The SKF TKSA 11 is the first instrument on the market that uses inductive proximity sensors, enabling accurate and reliable shaft alignment to be affordable for every budget.
- Live view of the instrument and motor position makes the measurement and horizontal alignment intuitive and easy
- The TKSA 11 app offers a fully functional demonstration mode allowing the complete alignment process to be experienced without the need to purchase the TKSA 11
- The TKSA 11 is designed to give a fast return on its investment and is also affordable for almost every budget
- Mobile devices allow high resolution graphics, intuitive usage, automatic software updates and display unit choice
- By using inductive proximity sensors, the measurement is no longer affected by bright sunlight, the influence of backlash is reduced and the instrument becomes more robust. All enabling the TKSA 11 to deliver accurate and reliable shaft alignments
- Automatic alignment reports give a complete overview of the alignment process and results. Reports can easily be shared via email or cloud services
- The TKSA 11 is supplied in a sturdy SKF carrying case
- Extensive range of accessories is available.
| Product Name | SKF TKSA 11 Innovative Shaft Alignment Tool Easier And More Affordable |
|---|---|
| Weight | 2.10 Kg |
| Operating System | Apple iOS 9 or Android 9 (and above) |
| Operating Temperature | 0 to 45 °C (32 to 113 °F) |
| Sensors and communication | 2× Inductive proximity sensors Inclinometer ±0.5° Bluetooth 4.0 LE |
| System measuring Distance | 0 to 185 mm (0 to 7.3 in.) between brackets |
| Measuring Errors | <2% |
| Operating Time | Up to 18 hours, rechargeable LiPo battery |
| Alignment Method | Alignment of horizontal shafts 3 position measurement 9–12–3 |
| Live Correction Values | Only for horizontal |
| Extra Features | Automatic .pdf report |
| Power Adapter | Charging via micro USB port (5V) Micro USB to USB charging cable supplied Compatible with 5V USB chargers (not included) |
| Dimensions | 355 × 250 × 110 mm (14 × 9.8 × 4.3 in.) |
| Manufacturer | SKF |
| Color | Black |
| Country of Origin | United States |
