PRODUCT OVERVIEW

A unique feature of the signal monitoring is the PEAK led. This uses multipoint signal take-offs to watch for overload in several parts of the channel strip, and the led lights more brightly as the signal approaches the peak point. For smooth and accurate channel control, the EPM has 60mm high quality faders as used on other Soundcraft desks. The monitor output and headphone output work in parallel so that performers can still listen on phones while an engineer is listening on studio monitors.

The emphasis with the Soundcraft EPM is very firmly on quality build and audio performance, with an easy to understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly-transparent GB30 Mic amp (designed by Graham Blyth for the company's 30th anniversary, and also used on the larger LX7ii and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types.

Other Features include: 2 configurable auxiliary buses; XLR-type and 1/4" metal jack connector sockets; RCA phono stereo playback inputs and record outputs; 3-band EQ with a swept mid on mono inputs; 2-band EQ on stereo inputs; TRS insert sockets and inserts on all mono inputs and mix output; Ten-segment LED output metering; Intuitive and comprehensive solo system; Headphone output; Easily rack mountable.

The Soundcraft EPM will find itself in many applications including live music, recording, houses of worship and multi-speaker installations.

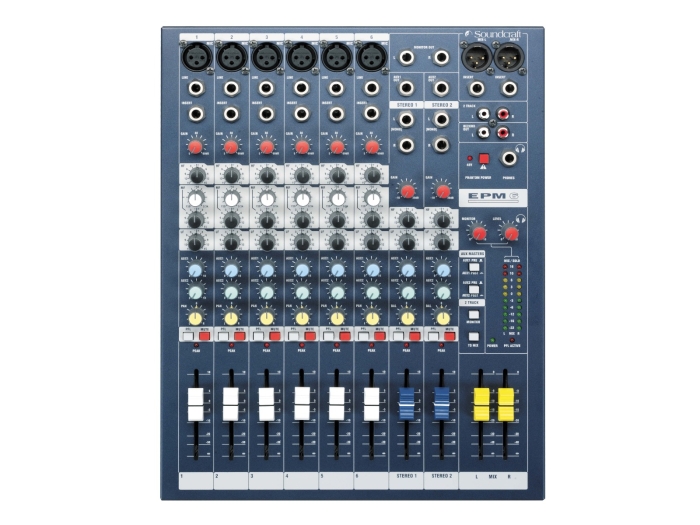

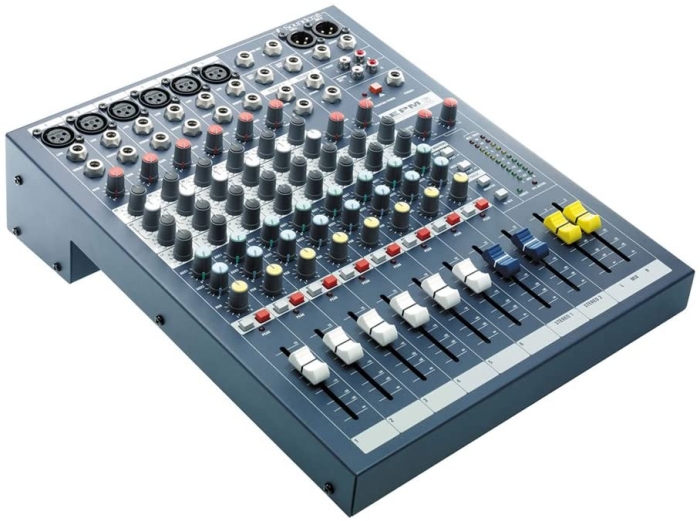

Soundcraft EPM6 Analog Mixer

Great mixing, at an awesome price. The Soundcraft EPM6 6-channel Mixer is a superb mixing desk. It features six channel strips for use in small to medium sized venues. Its robust build means that it can deal with the wear and tear of touring.

The Soundcraft EPM6 6-channel Mixer has options for EQing your inputs so you can get an awesome mix during performances, and the sound quality is excellent. The high performance of the Soundcraft EPM6 6-channel Mixer is evident by the rich and uncoloured sound that comes from its stereo output. Easy to set up and use, it's a great tool to have whether you run a small venue or perform in a band.

Features

• 6 mono mic/line channels plus 2 stereo channels
• 3 band eq with swept-mid on all mono channels
• Easily rackmountable (with optional rack kit)
• Trs insert sockets and inserts on all mono inputs and mix output
• 2 configurable auxiliary buses

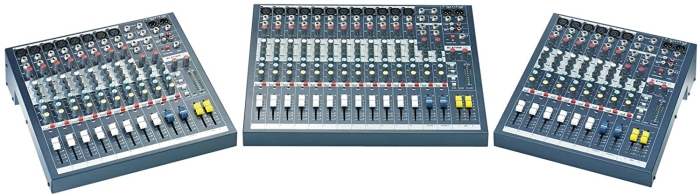

• Frame sizes 6+2, 8+2 and 12+2
• 2 configurable auxiliary buses
• XLR-type and ¼” metal jack connector sockets
• RCA phono stereo playback inputs and record outputs
• 3-band EQ with a swept mid on mono inputs
• 2-band EQ on stereo inputs
• TRS insert sockets and inserts on all mono inputs and mix output
• Ten-segment LED output metering
• Intuitive and comprehensive solo system
• Headphone output
• Easily rack mountable
