PRODUCT OVERVIEW

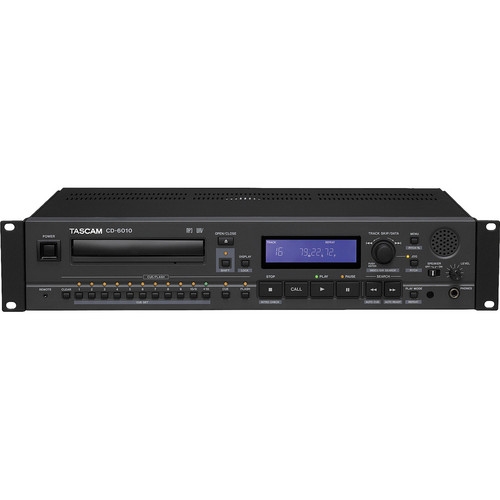

The Tascam CD-6010 Professional CD Player delivers a wealth of professional features in a rugged rackmountable design, aimed at professional broadcast studios, recording studios and sound reinforcement applications. The CD-6010 features a reliable front-loading tray which supports audio, WAV and MP3 (192kb) CD formats. Programmable flash start capability allows for instantaneous playback of up to 20 tracks.

There are balanced XLR stereo and mono outputs, S/PDIF digital connections, and AES/EBU digital output as well. The 19" rackmountable chassis features a large, bright LCD display that provides directory search for MP3 CDs, track elapsed, track remain, total remain and plenty of additional information. The CD-6010 includes a wireless remote control and the receiver sensor may bedisabled in order to avoid inadvertent settings.

In addition there is a serial control port (RS-232C, D-sub 9-pin) and parallel control port (D-sub 15-pin) for professional remote operation. Additional features include +/- 16% pitch control, key original pitch control, fade in / fade out and programmable memory playback for up to 100 CDs.

• Highly reliable tray CD player for broadcast, installation or touring applications
• Audio CD-R/RW, MP3 (192 KB) and WAV playback
• Flash start capability for up to 20 tracks
• Numeric keys for track selection and flash start
• Frame accurate search
• Memory for up to 20 cue points
• Skip back function (jump back a few seconds during playback)
• Auto cue, auto ready, incremental playback, intro check functions
• Resume function
• Index search for audio CDs
• Directory search for MP3 CDs
• Playback modes include Single, All and Program (up to 99 tracks)
• Memory for playback programs of up to 100 CDs
• Repeat modes include Single, All and A-B
• Selectable interval time between tracks
• ±16% pitch control
• Key original function (change speed only)
• Fade in/out (up to 10 seconds, in 0.5-second steps)
• Time display (track elapsed / track remain / total remain)
• Power-on play (timer function)
• Relay play with multiple units
• Fader start / event start
• Lock function to avoid accidental operation
• Anti-shock memory
• XLR balanced analog output (output level may be customized by technical support)
• RCA unbalanced analogue output
• Coaxial digital output (S/PDIF)
• XLR AES/EBU digital output
• Mono output
• Serial control (RS-232C, D-sub 9-pin)
• Parallel control port (D-sub 15-pin)
• Headphones output with dedicated volume control
• Switchable monitor loudspeaker
• Last mode memory (Playback mode / Program / Repeat mode / Time display)
• End Of Message notification
• Backlit LC display
• Removable power cable
• Rack-mountable chassis (2 U)
• Wireless remote control included (receiver can be disabled if required)
