PRODUCT OVERVIEW

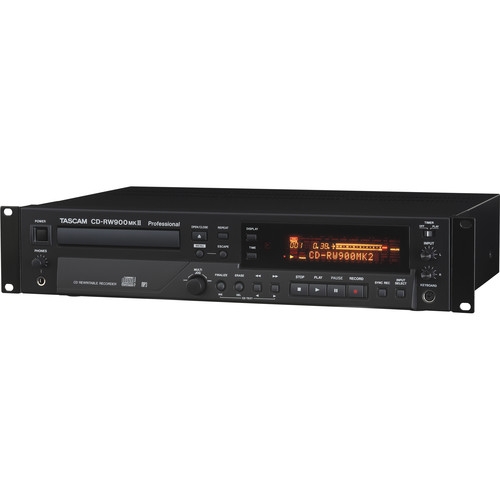

The CD-RW900MKII from Tascam is a professional CD recorder that uses a high-performance AKM audio codec and features gapless recording, analog and digital inputs and more.

The recorder uses the AKM AK4528VM codec which features 24-bit AD/DA conversion for clean, clear sound quality with a frequency response of 20Hz to 20kHz +/-0.8dB. This high-performance codec captures audio with a wide dynamic range for optimal CD recording.

The CD-RW900MKII also features RCA inputs and outputs for use with analog sound sources as well as S/PDIF connectivity for use with digital mixers and processors.

Features at a glance

• Adopts AK4528VM audio codec made by Asahi Kasei Microdevices which has 24-bits processing
• Independent input level controls provides serious level control
• Supported media: CD-R, CD-R-DA, CD-RW, CD-RW-DA
• High speed CD-RW Supports
• CD drive supports playback of CD-DA and Data-CD
• High reliability proprietary TEAC tray drive
• OPC (optimum power control) function: Adjusting the laser power for each disc type
• Fade-in/Fade-out recording function (1 to 30 seconds, 1 seconds increments)
• Sync recording function: Automatically start/stop recording at a preset level (–24dB to –72dB, 6dB increments)
• Digital volume for adjusting recording level seriously (–∞, –54.0dB to 18.0dB)
• Automatic track division: Automatically insert a track division at a preset condition
• Manual track division: Insert a track division by manual operation
• Time track division: Automatically insert a track division per preset interval (1 to 10 minutes, 1 minutes increments)
• Rec-mute function: Recording four seconds of silence on the disc
• Selectable maximum recording track numbers (automatically stop at preset number)
• Erase function: Erase selected track or disc (for CD-RW)
• Four playback modes (continuous, single, program, random)
• Repeat playback function (continuous, single, program, random, A-B)
• Fade-in/Fade-out playback function (OFF, 1 to 30 seconds, 1 seconds increments)
• Auto-cue function: Automatically pause by detection of a sound of start point in a track
• Auto-ready function: Automatically pause at head of next track after playback previous track
• Pitch control playback function: Pitch and speed can be varied (±16%, 0.1 to 1.0% increments, for CD-DA)
• Key control playback function: (b1 to b6, #1 to #6, half-note increments, for CD-DA)
• When using key control function with pitch control function, these function provides speed changing without changing pitch
• Timer playback function (external timer sold separately): Automatically begin playback when turned on
• Unfinalize function (for CD-RW): Erase TOC information of finalized CD-RW
• Time display switching (elapsed track/disc time, remaining track/disc time)
• CD-text editing supports
• PS/2 keyboard (sold separately) connection for remote control or entering a title
• SRC (sampling rate converter): Automatically convert the incoming frequency to 44.1kHz (for 32 to 48kHz)
• RCA analog unbalanced inputs/outputs
• COAXIAL digital input/output (IEC60958-3:S/PDIF)
• OPTICAL digital input/output (IEC60958-3:S/PDIF)
• Wireless remote controller with 10-key included
• Headphone output (20mW/ch)
• 3-polar AC sockets with the detachable AC cable
• 2U EIA rackmountable
• RoHS certified
