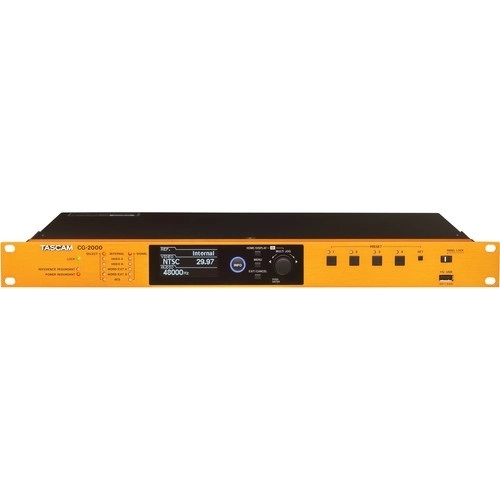

PRODUCT OVERVIEW

The unit is equipped with an external input connector that supports a 10MHz signal that allows it to be connected to a rubidium clock or GPS clock for even higher precision. External clock jitter is reduced using an original circuit design that incorporates a high-performance video clock generator engineered with a FPGA and a PLL (phase-locked loop) circuit with a discrete filter. This enables a stable clock signal to be provided to the video/word outputs, improving system stability.

In addition to twelve Wordclock outputs and four video outputs, the digital outputs include two AES3/AES11 and two S/PDIF outputs, making this unit useful for large-scale audio/video synchronization systems and a wide variety of other applications. Of the twelve Wordclock outputs, two also support x2 Fs, x4 Fs and 256 Fs output, enabling them to be used in systems with Pro Tools and other DAW software.

The GC-2000 provides redundancy for the power supply and the video/audio clock, as well as alarm outputs in the event an error occurs. Amphenol BNC connectors on the chassis use nuts for coupling for extra durability, along with a single circuit board used for each connector. This provides good resistance to the twisting and pulling of cables, and the suppression of interference between connectors.

• Two power supply circuits for redundancy
• Supports video reference/word clock redundancy
• Internal clock uses a high-precision OCXO (oven-controlled crystal oscillator) that is not influenced by the temperature of the environment
• External input connector that supports 10 MHz, allowing creation of systems with even higher precision
• Glitch-free relocking circuit prevents noise and skipping during clock dropouts and recovery
• Numerous output connectors, including twelve Wordclock outputs, enabling the use in large-scale audio synchronization systems
• Supports input and output of a variety of video signal formats, including NTSC, PAL and HD Tri-level
• AES3 and AES11 signals can also be used for external master clock input sources
• Analyzer function that can measure output device termination
• Optimal levels can be provided to other devices by adjusting Wordclock output levels
• Self-calibration function using an external oscillator (Atomic/GPS 10MHz, GPS PPS) (requires a separate PPS-output 10 MHz oscillator with a built-in GPS antenna)
• Wordclock performance up to 192 kHz
• 0.1% pull-up/down for 24F (Film) and 29.97F (NTSC), and 4% pull-up/down for 24F (Film) and 25F (PAL)
• Up to four system settings can be saved to buttons for recall, and saved settings can be imported and exported via USB
• Durable Amphenol manufactured nut-coupling BNC connectors
• Independent circuit boards for each connector prevents contact failures due to twisting
• Panel-lock switch can be used to prevent inadvertent changes to unit operation
• 128 x 64-pixel organic EL display with a wide viewing angle
• Firmware updates possible using the USB port
• 1U rackmount
• RoHS-compliant
