PRODUCT OVERVIEW

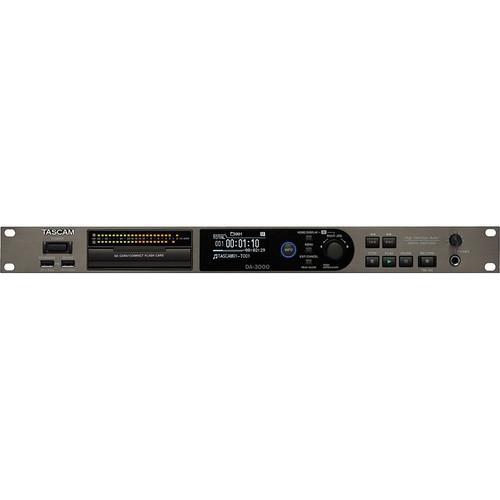

The DA-3000 Stereo Master Recorder and ADDA Converter from Tascam is a 2-track analog to digital/digital to analog converter that can be used as a digital recorder, converter, or monitoring system for mastering, mixing, and tracking applications. It records to SDHC or CF cards and has a USB port that allows you to transfer files to and from an external flash drive. The DA-3000 can record analog or digital signals as stereo PCM files in up to 192kHz and stereo DSD files in up to 5.6MHz.

The DA-3000 was built with dual-mono circuitry to reduce interference between channels to allow for more accurate audio capture. Both the left and right channels conversion is via their BurrBrown PCM1795 converter chip. The unit has a fanless design to reduce internal noise. Visual monitoring of your signals is provided via the front-panel 24-dot level meter.

The recorder provides a variety of input and output in both the analog and digital domain. Stereo XLR and RCA inputs and outputs allow you to connect to most analog sources, while S/PDIF, AES/EBU and SDIF-3 digital connections allow you to integrate a variety of digital sources. You can control the DA-3000 with the included remote control.

Features at a glance

• Stereo recording to SDHC card or CF card
• PCM recording format: BWF (44.1k/ 48k / 88.2k / 96k / 176.4k / 192k Hz, 16/24-bit)
• DSD recording format: DSDIFF/DSF (2.8/5.6MHz)
• SD card slot (supports 4 to 32GB SDHC cards)
• CF card slot (supports UDMA)
• WAV file playback
• Cascade function enables simultaneous operation of multiple units
• Recording 2 mono files from stereo input possible
• Mark functions can be used set up to 99 points per file (mark information can be used in software that supports BWF format)
• When recording, designation of the recording file folder possible
• Synchronized recording using level, stop time and recording start delay time setting
• Input level can be adjusted in 0.5dB step
• Using automatic track incrementing function, new files can be created automatically while continuing to record when a condition (level, file size, digital input) set in advance occurs
• Manual track incrementing function can be used whenever you like to create a new track while continuing to record
• Automatic mark functions can be used to easily check problems (levels, word clock unlocking) detected during recording
• File name format can be set to either a user-defined word or the date and time
• Repeat playback function (all files or single file)
• Folder playback function can be used to play all files in a folder
• Playlist function allows files to be programmed in advance for playback
• Divide and delete functions can be used to manage files that are already recorded
• UNDO function can be used to cancel the previous operation
• USB host port supports copying between USB flash drives and CF/SDHC cards
• File names can be changed
• Direct location possible when a USB keyboard is connected
• Word clock master can be set to Internal, Word input or Digital inputs
• Analog input and output reference levels can be set to –9 / –14 / –16 / –18 / –20dBFS
• Digital input has a sampling rate converter (supports 32k to 216k Hz)
• Audio files prepared on a computer can be played back (if in a format supported for playback by this unit)
• Oscillator function (440Hz, 1kHz, 10kHz)
• Input monitoring function allows input signals to be output without recording
• Updating is possible
• EI core transformer used in power supply section
• Dual mono circuits eliminate interference between left and right channels
• Fully-balanced circuits realize low noise
• 128 × 64 OEL display with a wide viewing angle
• 24-dot stereo LED level meters with adjustable brightness make checking levels easy
• TCXO with 1ppm precision
• Backup memory stores settings even when the power is off
• Fanless design eliminates unwanted noise
• Aluminum front panel harmonizes with other studio equipments design
• Operation possible using included RC-10 wireless remote control
• Standard 1/4" headphones jack provides 45mW/ch output
• USB port for USB keyboard (supports USB1.1)
• USB port for USB flash drive (supports USB2.0)
• XLR digital input/output (supports AES3-2003 and IEC60958-4:AES/EBU formats)
• RCA Coaxial digital input/output (supports IEC60958-3:S/P DIF format)
• BNC digital input/output for DSD (supports SDIF-3 and DSD-raw formats)
• RCA analog unbalanced input/output
• XLR analog balanced input/output
• EIA 1U rackmount size
• RoHS compliant
