PRODUCT OVERVIEW

High-Quality Condenser Microphones

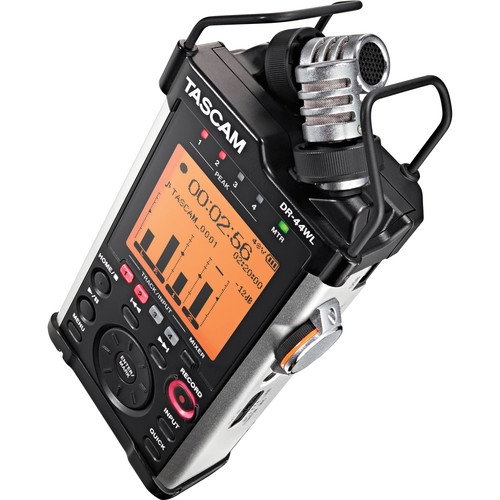

A pair of studio-quality condenser microphones top the DR-44WL, arranged in a true XY pattern for detailed imaging and phase coherence. The mic capsules are built to withstand up to 132 dB SPL - as loud as a jet airplane - without distorting. Record concerts and rehearsals with the confidence that your recording won't be distorted. In addition to the great-sounding new capsules, a shockmounting system has been developed for lower handling noise and rumble. The capsules are suspended in a rubber mount that avoids low frequency noises when handheld, mounted on a camera, or used on a tripod

Dual-Level Recording Feature Helps Prevent Overload

If levels get so high that your track is distorted, that recording can't be saved with any kind of mastering. The DR-44WL includes a limiter to keep levels under control, but an even more effective system is the Dual-Level Recording feature. Dual-Level Recording is a function that solves this problem by simultaneously recording two stereo files at different levels. If your recording is distorted, you have a lower level "safety track" that won't be distorted. Note, when the Dual-Level recording function is enabled, a maximum of two stereo tracks can be recorded simultaneously

XLR Combo Jacks

The XLR/TRS external input jacks accept either microphone or line level sources. Balanced or unbalanced signals can be plugged in, at either +4 or -10 levels, using the locking XLR connector or the 1/4" jack. The DR-44WL supplies 48V Phantom Power for condenser microphones that require it. Both the internal mics and external inputs are used during 4-channel recording, for live recording

Microphone Preamp and A/D Conversion

A programmable gain amplifier (PGA) is used to adjust the level of the audio inputs. In many devices, the audio codec level is adjusted to control levels. In the DR-44WL, the mic gain circuit is independent from the A/D converter for low noise performance as well as programmable gain (manual, automatic, or controlled over Wi-Fi.)
The CIRRUS LOGIC CS42L52 is used in the DR-44WL. The A/D - D/A chip features both great audio performance and low power use for longer battery life. The built-in mics and the external inputs both pass through this low-noise audio input circuit

4-Track Recording Mode

The DR-44WL can record both the internal microphones and the external inputs simultaneously for a 4-track recording. Use the microphones to capture the sound in the room while recording a board mix from the PA mixer. Other 4-channel applications include drum set recording, surround recording, and film production

Remote Wi-Fi Control

The DR-44WL creates its own Wi-Fi network with your iOS or Android phone, and a free app called DR Control controls remote operation without touching the unit. The app allows recording to be started and stopped, and can be used to check and adjust input levels. Any of the recording controls on the DR-44WL can be controlled over Wi-Fi.
Wi-Fi transmission range is about 65 feet (20m) - well beyond the reach of infrared remotes - so the recorder can be placed wherever the recording sounds best. Audio from the DR-44WL can also be streamed over Wi-Fi to check the recording. Plug headphones into your smartphone and listen to a near-realtime feed from the recorder

Simple Wi-Fi Connections Without a Router

The DR-44WL connects with smartphones and other Wi-Fi devices directly. There is no need for a Wi-Fi router network or other external equipment. Wi-Fi connections can be established simply by inputting the information shown in the app. Connection status can be checked with an LED on the unit as well as the app screen. Even if the Wi-Fi connection is interrupted, recording will not stop

Remote Control Using the Free DR Control App

The free DR Control app allows your iOS or Android phone to control the recorder from anywhere in the room. Start recording on-stage or from the back of the room, while placing the DR-44WL wherever the microphones sound best. Remote start also eliminates handling noise from pressing a button or moving the recorder.
In addition to recording, playback and other transport controls, DR Control can adjust the input levels, switch on the low-cut filter, change the mix, and more. A power-conservation mode is included to minimize battery consumption from Wi-Fi use
