PRODUCT OVERVIEW

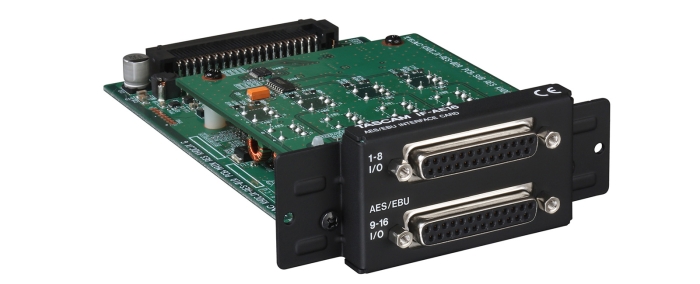

The IF-AE16 16-Channel AES/EBU Interface Card from Tascam is designed to fit the DA-6400 64-Channel Recorder. The IF-AE16 card features two 25-Pin Sub-D connectors for 16 AES/EBU channels.

• AES/EBU input/output audio interface card for DA-6400/DA-6400dp digital multitrack recorders
• 16 channels of input and output at 44.1/48/88.2/96kHz at either 16-bit or 24-bit
• Up to 32 channels of AES inputs and outputs using two IF-AE16 cards
• Built-in sampling rate converter for inputs with support for input frequencies of 32-192 kHz
  * Settings can be made for each pair of channels
• Two D-sub 25-pin connectors for channels 1-8 and 9-16
• S/PDIF also supported as an input data format
• Input/output connector pin assignments* conform to AES59-2012
