The ML-16D Dante / Analog Converter from Tascam is a Dante-focused converter designed to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize D-Sub format connectors.
PRODUCT OVERVIEW

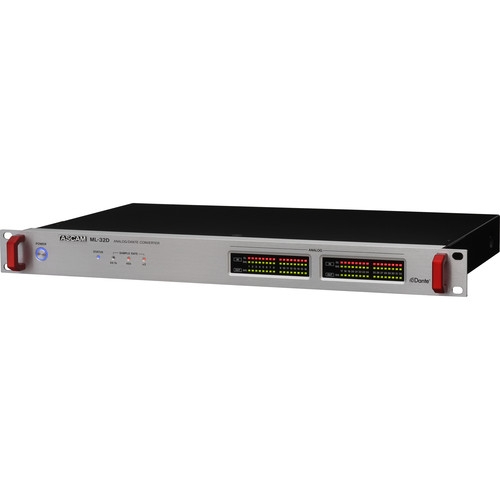

The ML-32D Dante / Analog Converter from Tascam is a Dante-focused converter designed to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize D-Sub format connectors.
The Tascam ML-32D has four D-Sub inputs and four D-Sub outputs, that can be used to connect several devices that utilize D-Sub connectors such as microphone preamplifiers, console mixers, audio interfaces, amplifiers, and other audio devices.
Furthermore, the Dante protocol provides uncompressed, multi-channel, low-latency digital audio over a standard Ethernet network and supports up to 1024 channels of 32-bit / 192 kHz audio over a Cat 5/6 Ethernet system.
- Dante-focused interface for connection of external audio in or out of a Dante audio network.
- 32-channel analog line input and 32 analog line outputs (48 kHz / 96 kHz) using 8 D-Sub connectors.
- Dual redundant Ethernet jacks which support both primary and secondary connections.
- Up to 24-bit / 96 kHz quality.
- LED display for signal level and overload per input/output channel.
- Reference level dip switches for selectable dBu level metering.
- Firmware updatable via Dante port.
- AES67 and Revenna compatible.
| Product Name | Tascam ML-32D 32-channel Analog/Dante Converter |
|---|---|
| Weight | 3.500000 |
| Frequency Response | 20Hz to 20kHz +0.1dB/–0.5dB |
| Power Capacity | 22W |
| Impedance | 10kΩ or higher |
| Dimensions | 19.0" × 1.77" × 11.96" / 483 × 45 × 303.8 mm |
| Manufacturer | Tascam |
| Color | Black |
| Country of Origin | United Arab Emirates |
