PRODUCT OVERVIEW

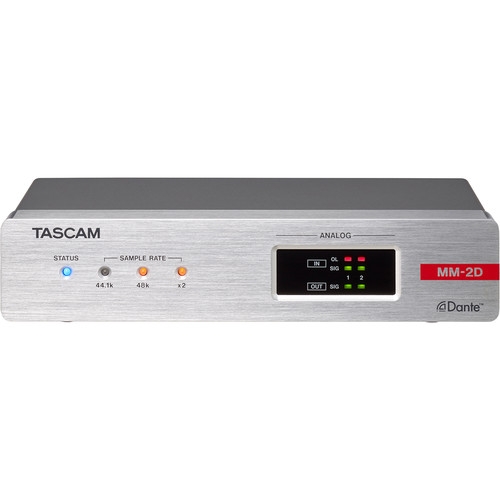

The MM-2D-X Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included.

• 2 analog outputs on 3-pin XLR connectors
• 4 Dante inputs/outputs
• Supports PoE (Power over Ethernet)
• Sample rate up to 24-bit / 96 kHz
• Supports Dante daisy-chain, which allows two Dante Compact Processor models to be connected without a network switch
• Compatible with Dante Domain Manager and Dante AES67 mode
• Flexible scene preset function allows you to work in different area situations (up to 50 presets)
• Two types of user-control software available for Windows/Mac/iOS/Android devices:
• TASCAM DCP CONNECT, for integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
• TASCAM EZ CONNECT, for end-users: simple app design for only the necessary functions such as area-volume settings, etc.
• Remote control via Dante
• Half-rack mountable size
• Equipped with indicators that show LAN/Dante connection status and sample rate
• Equipped with signal indicators that monitor digital input/output signals
• Configurable reference level (via remote control only)
• Surface-mount adapters for installation under desks included
