PRODUCT OVERVIEW

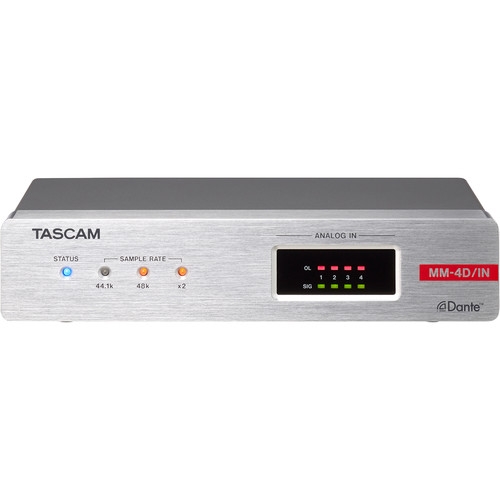

The MM-4D/IN-X Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included.

• 4-channel mic/line input with phantom power (+48v) support on 3-pin XLR connectors
• 4 Dante inputs/outputs
• Supports PoE (Power over Ethernet)
• Sample rate up to 24-bit / 96 kHz
• Supports Dante daisy-chain, which allows two Dante Compact Processor models to be connected without a network switch
• Compatible with Dante Domain Manager and Dante AES67 mode
• Flexible scene preset function allows you to work in different area situations (up to 50 presets)
• Two types of user-control software available for Windows/Mac/iOS/Android devices:
• TASCAM DCP CONNECT, for integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
• TASCAM EZ CONNECT, for end-users: simple app design for only the necessary functions such as area-volume settings, etc.
• Remote control via Dante
• Half-rack mountable size
• Equipped with indicators that show LAN/Dante connection status and sample rate
• Equipped with signal indicators that monitor digital input/output signals
• Configurable reference level (via remote control only)
• Surface-mount adapters for installation under desks included
