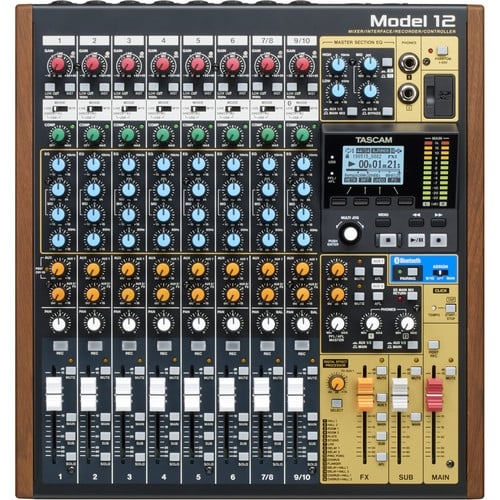

Tascam Model 12 Integrated Production Suite Mixer/Recorder/USB Interface
PRODUCT OVERVIEW
TASCAM's Model 12 is a compact all-in-one integrated mixer designed for music and multimedia creators, songwriters and performers. Features include TASCAM's critically acclaimed multi-track recorder, USB audio/MIDI interface, DAW control functions, and unique podcasting capability including mix-minus and smartphone inputs. The Model 12 supports your creative process, production, and workflow from start to finish including podcasting.
The output delay creates stable sync between streamed audio and video for all networks and video systems. The easy set-up enables dual Audio Delay for both the USB and Main outputs (Main output can be selected On/Off). In addition, you can monitor the output delay signal by headphones if you choose Main output On.
The Model 12's intuitive internal 12-track recorder records WAV files of up to 24-bit/48 kHz audio quality directly to an SD card, with 10-track playback. Supporting metronome, punch-in/out, and overdubbing functions, the internal recorder also allows WAV files to be imported directly into a DAW for further editing or production.
A dedicated click output with TAP TEMPO allows the tempo to be monitored in both live or recording environments. This allows live performers to play with tracks using the built-in multi-track engine or music creators to monitor the tempo when recording.
Features at a glance
- 10 inputs (8 Monaural XLR mic inputs [+48V support])/10 TRS line inputs) and Bluetooth® 5.0 input, 3.5mm (1/8") TRRS input (for Smartphone)
- TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 6)
- 1-knob compressor and 3 band EQ installed on all input modules
- Equipped with 60mm faders
- Selectable PFL/AFL modes and the in-place solo (SIP)
- Stereo output to MAIN L-R and SUB L-R, monaural send to AUX1 and AUX2
- Dual headphone output with individual volume and source selection
- TASCAM FX equipped
- Recording function with punch in/out support allows direct SD card 12 track recording / 10 track playback
- 12 in / 10 out USB audio interface function (USB Type-C connector)
- Built-in metronome function
- Bluetooth® 5.0 input with AAC and SBC codec support
- Equipped with MIDI IN/OUT connectors, USB-MIDI interface function, and MTC output/MIDI clock output with SPP support
- Supports simple DAW control (HUI/MCU protocol emulation)
- Click output with TAP TEMPO support
- Dual footswitch (TRS connector) function allows assignment of transport, FX, etc.
- Smartphone input with mix-minus function
| Product Name | Tascam Model 12 Integrated Production Suite Mixer/Recorder/USB Interface |
|---|---|
| Weight | 4.30 Kg |
| Impedance | 1.8k ohm |
| Frequency Response | 20Hz to 20kHz (+0.5/-0.5 dB, MIC IN to MAIN OUT) |
| Max. Power Consumption | 16W |
| Dimensions | 343(W) × 360(H) × 98.8(D)mm |
| Manufacturer | Tascam |
| Color | Black |
| Country of Origin | United Arab Emirates |
