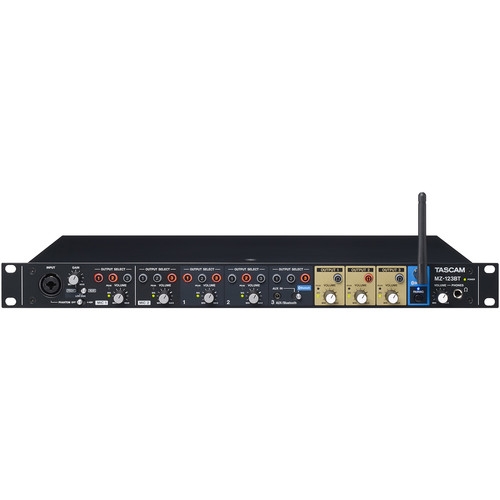

The MZ-123BT Multi-Zone Audio Mixer with Bluetooth from Tascam is a compact 1 RU multichannel, multi-zone professional installation mixer designed for versatile routing, mixing, and distribution. It can be used for up to three zones of music and announcements in commercial applications such as retail venues, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities.

The Tascam MZ-123BT offers a simple, intuitive layout for ease of operation. The Bluetooth-enabled device comes equipped with two versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging. This mixer is built with a volume control for each input and zone routing buttons. In addition, it includes a power cord, eight Euroblock plugs, a cable band kit, a rackmount screw kit, and a Bluetooth antenna.

Features at a glance

• Slim rackmount mixer that can flexibly assign background music and mic announcements to three different output zones
• Built-in Bluetooth receiver for wireless audio playback from smartphones or tablets
• Bluetooth antenna installed on the front panel ensures a stable wireless connection within the specified range
• Three stereo line inputs
  • Two RCA unbalanced line inputs on rear panel
  • Bluetooth/Aux input on front panel
  • Gain controls on rear panel
• Two mic inputs for announcements or moderation
  • Connection via Euroblock connectors on the rear panel
  • Mic 1 can also be connected via the front-panel XLR/TRS combo connector (input level switchable HIGH/LOW)
  • Talkover function automatically lowers background music volume according to mic volume (with rear-panel controls for threshold, time and on/off)
  • PAD, high-pass filter and 48-volt phantom power on each mic input (switchable on/off on the rear panel)
  • Rear-panel controls for gain and three-band EQ

• Level controls and zone selection buttons on each mic and stereo line input
• Signal and peak indicators on each mic and stereo line input
• Three zone outputs with level controls, signal and peak indicators and monitor selection buttons
• Headphones output with level control for monitoring the zone outputs
