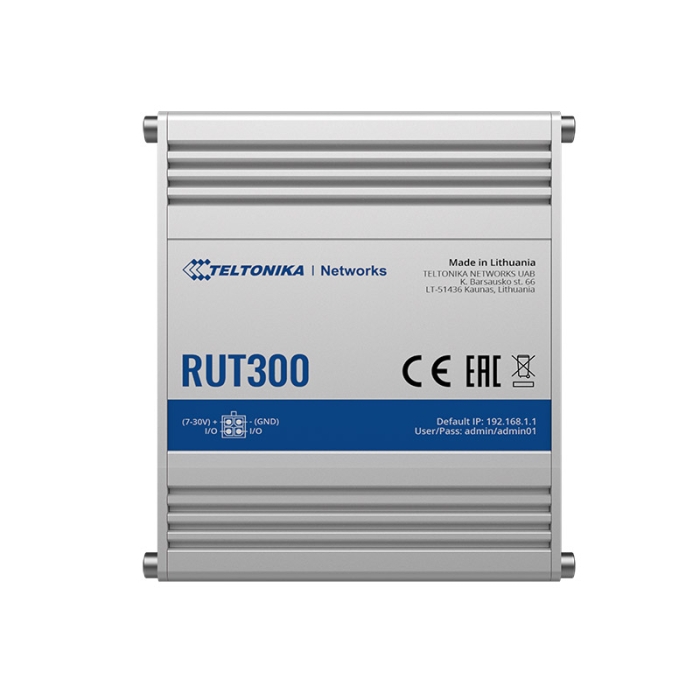

Teltonika RUT300 Industrial Ethernet Router
RUT300 is a powerful small Ethernet router, designed for demanding industrial and common network applications.
The robust aluminum housing, high-quality components and state-of-the-art production technology enable the RUT300 to operate in a demanding industrial environment at temperatures between -40°C and 75°C.
PRODUCT OVERVIEW
RUT300 is a powerful small Ethernet router, designed for demanding industrial and common network applications.
The robust aluminum housing, high-quality components and state-of-the-art production technology enable the RUT300 to operate in a demanding industrial environment at temperatures between -40°C and 75°C. Thanks to the wide supply voltage range (7-30 V), this product is suitable for the versatile integration of electronic devices. Passive PoE can significantly reduce the complexity, cost, and time required to integrate a solution.
The RUT300 is equipped with five fast Ethernet ports, two configurable digital inputs/outputs and USB 2.0 for easy connection of industrial machines, office or retail equipment and other devices to the network. It is a great choice for solutions where WIFI connection and high data speed are not required.
This professional device is equipped with the RutOS system. RutOS is an operating system based on Linux OpenWRT, which is a big advantage of the selection of Teltonika routers.
Another advantage is the use of RMS functions. The Remote Management System (RMS) enables remote management and monitoring of all Teltonika network devices. The system allows you to change the configuration and collect information about the status of individual devices, even if the devices do not have public IP addresses.
The RUT300 router also offers connection to the IoT-RMS cloud platform. This system allows you to remotely manage and configure not only your device, but also the entire solution infrastructure using RMS CONNECT.
Features:
• 5 x Ethernet ports, 2 x configurable digital inputs/outputs and a USB port for easy connection of various devices to the Internet
• Preconfigured Firewall for instant security and some of the best rated VPNs
• Passive PoE helps reduce deployment complexity
• RutOS and remote management system (RMS) support
• Robust aluminum housing with DIN rail mounting option
• Dimensions: 100 x 30 x 85 mm
• Weight: 229 g
| Product Name | Teltonika RUT300 Industrial Ethernet Router |
|---|---|
| Weight | 0.23 Kg |
| CPU | QCA9531, MIPS 24kc, 650 MHz |
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |
| I/O Port | 2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA |
| Network/Network Standard | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned) |
| Dimensions | 100 x 30 x 85 mm |
| Operating Temperature | -40 C to 75 C |
| Manufacturer | Teltonika |
| Color | White |
| Country of Origin | Lithuania |
