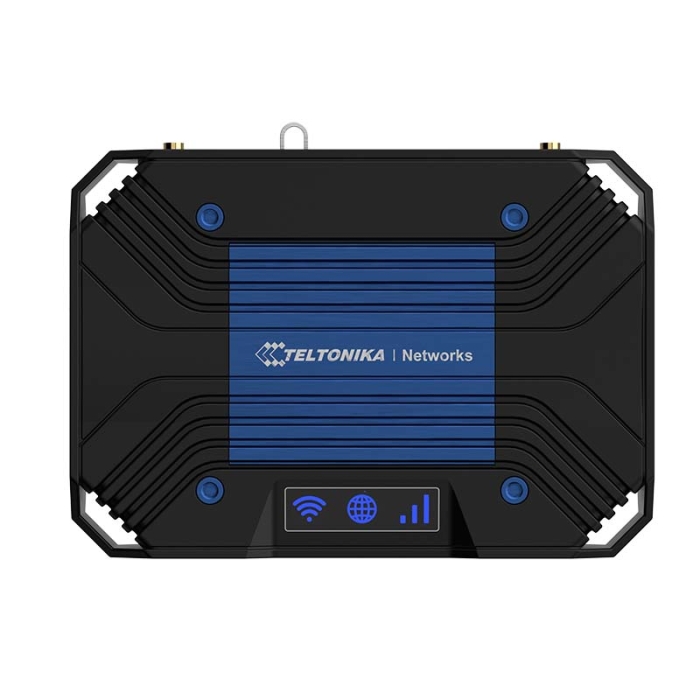

Teltonika TCR100 4G WiFi Router
The Teltonika TCR100 router is suitable for setting up a home IoT network. Two Ethernet interfaces (LAN&WAN) and 2.4 GHz and 5.0 GHz dual-band Wi-Fi allow you to easily connect multiple devices. With 4G LTE-A (Advanced) technology, the TCR100 can be used as a primary or backup connection source. Advanced LTE CAT6 allows maximum download speeds of up to 300 Mbps.
PRODUCT OVERVIEW
The Teltonika TCR100 router is suitable for setting up a home IoT network. Two Ethernet interfaces (LAN&WAN) and 2.4 GHz and 5.0 GHz dual-band Wi-Fi allow you to easily connect multiple devices. With 4G LTE-A (Advanced) technology, the TCR100 can be used as a primary or backup connection source. Advanced LTE CAT6 allows maximum download speeds of up to 300 Mbps.
The TCR100 includes connection indicators, Wi-Fi and Wi-Fi Protected buttons for quick and easy setup. The TCR100 is equipped with two SMA connectors for external LTE antennas, two Ethernet ports, a 4-pin DC connector and a SIM card slot.
The TCR100 router has a preconfigured firewall, flexible packet access control TCP, UDP, ICMP and many other security features.
The TCR100, like all Teltonika Networks products, uses the RutOS operating system with an intuitive OpenWrt-based user interface. The system provides unlimited configuration options.
Another advantage is the use of RMS functions. The Remote Management System (RMS) enables remote management and monitoring of all Teltonika network devices. The system allows you to change the configuration and collect information about the status of individual devices, even if the devices do not have public IP addresses.
Key Features:
• 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
• Dual-band Wi-Fi 2.4 GHz and 5.0 GHz
• Network functions NAT, Static / Dynamic routing, Firewall, OpenVPN, IPsec
• Power socket for 4pin, 9-30 VDC power supply
• Status LEDs: 1 x WAN, 1 x Wi-Fi, 3 x connection, 2 x LAN
• Operating temperature: -40 ° C to 75 ° C
• Dimensions: 150 mm x 37 mm x 105 mm
• Weight: 376 g
| Product Name | Teltonika TCR100 4G WiFi Router |
|---|---|
| Weight | 1.00 Kg |
| CPU | QCA9531, MIPS 24kc, 650 MHz |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| I/O Port | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover |
| Network/Network Standard | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL) |
| Dimensions | 150 x 37 x 105 mm |
| Operating Temperature | -40 C to 75 C |
| Manufacturer | Teltonika |
| Color | Black |
| Country of Origin | Lithuania |
