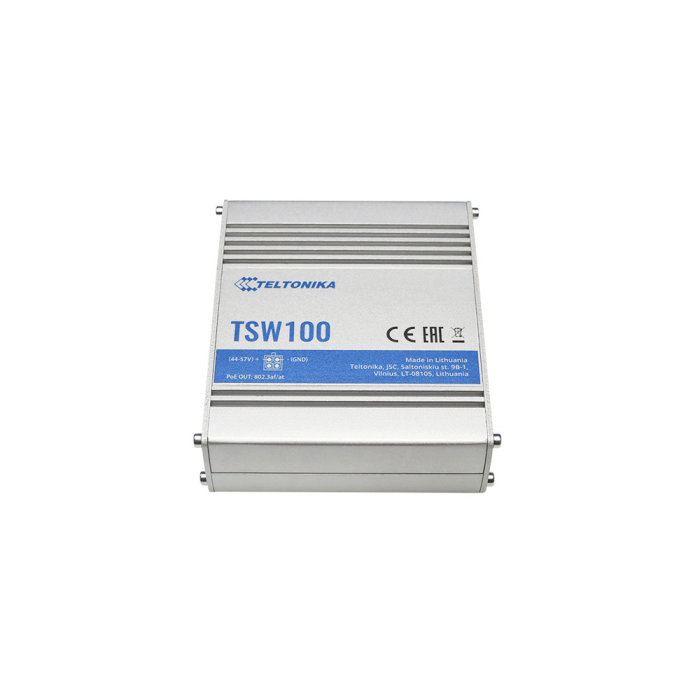

Teltonika TSW100 Industrial POE+ Switch
First industrial unmanaged switch from Teltonika Networks. TSW100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
PRODUCT OVERVIEW
First industrial unmanaged switch from Teltonika Networks. TSW100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
This rugged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
Features:
• 4 x PoE ports with 802.3af and 802.3at support
• 5 x Gigabit Ethernet with speeds up to 1 000 Mbps
• Compact size with DIN rail mounting option
• Plug-n-Play, no additional configuration needed
• Total power budget at PSE up to 120 W, 60 W with standard package PSU
• Powering option for 4pin, 7-58 VDC power supply
• Power consumption: Idle <2 W, Max: <9 W (no PoE device connected)
• Status LED 10 x Ethernet, 1 x power supply
• Ingress protection rating IP30
• Operating temperature -40 °C to 75 °C
• Aluminum housing with wall or DIN rail mounting option and grounding capability
• Dimensions 115 x 32 x 95 mm
• Weight 340 g
| Product Name | Teltonika TSW100 Industrial POE+ Switch |
|---|---|
| Weight | 0.340000 |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/O Port | 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Dimensions | 115 x 32 x 95 mm |
| Channel Bandwidth | 10 Gbps |
| Operating Temperature | 40 °C to +75 °C |
| Manufacturer | Teltonika |
| Color | White |
| Country of Origin | Lithuania |
Product Datasheet
