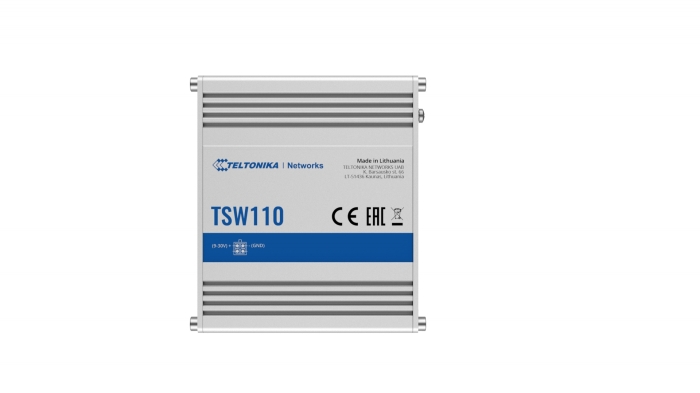

Teltonika TSW110 Layer 2 Unmanaged Industrial Ethernet Switch
The Teltonika TSW110 is a layer 2 unmanaged switch. It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution, offers a wide range of supported power supply voltages (9-30 V) and can be powered up through the first LAN port.
PRODUCT OVERVIEW
The Teltonika TSW110 is a layer 2 unmanaged switch. It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution, offers a wide range of supported power supply voltages (9-30 V) and can be powered up through the first LAN port.
TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100.
Possible to power up through the first LAN port.
It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
It offers a wide range of supported power supply voltages (9-30 V).
Ideal for professional high bandwidth applications to provide reliable data connection.
Teltonika TSW110 Key Features
- Plug and play
- Rugged aluminium housing
- DIN rail and surface mounting options
- 1 x power, 10 x Ethernet status LEDs
- 9-30 V wide range of supported power supply voltages
- 5x Gigabit Ethernet with speeds up 1000 Mbps
| Product Name | Teltonika TSW110 Layer 2 Unmanaged Industrial Ethernet Switch |
|---|---|
| Weight | 0.227000 |
| CPU | CPU |
| Ethernet | 4 x RJ45 ports, 10/100/1000 Mbp |
| I/O Port | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high / 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Operating System | RutOS (OpenWrt based Linux OS) |
| Network/Network Standard | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA |
| Dimensions | Dimensions |
| Operating Temperature | -40 C to 75 C |
| Manufacturer | Teltonika |
| Color | Silver |
| Country of Origin | Lithuania |
Product Datasheet
