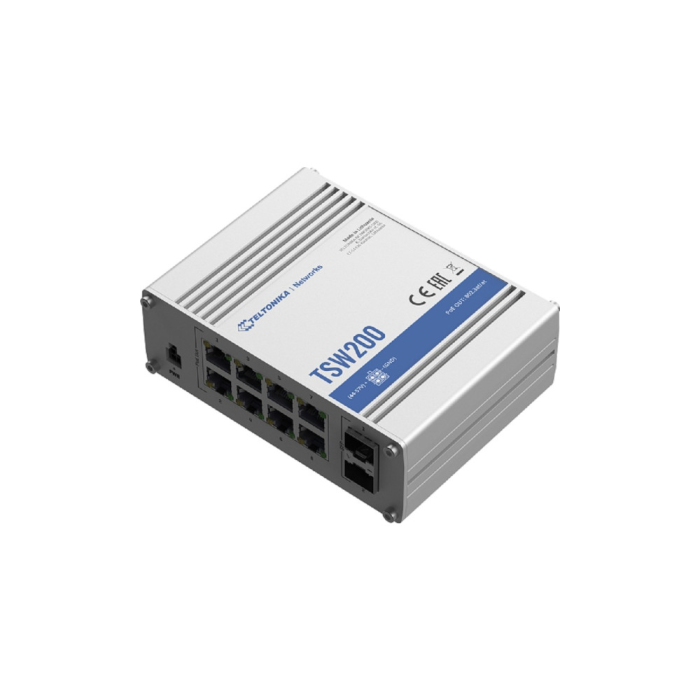

Teltonika TSW200 Industrial POE+ Switch
Teltonika TSW200 - industrial switch is equipped with two SFP ports for connecting optical cables and eight Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards.
PRODUCT OVERVIEW
Teltonika TSW200 - industrial switch is equipped with two SFP ports for connecting optical cables and eight Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards.
This robust industrial switch provides central power up to 240 W (one port up to 30 W). It is ideal for professional high bandwidth applications where a reliable data connection and PoE power supply are required.
Features:
• 2 x SFP ports
• 8 x Gigabit Ethernet with speeds up to 1 000 Mbps
• Compact size with DIN rail mounting option
• Status LED 16 x Ethernet, 2 x SFP ports supply
• Ingress protection rating IP30
• Operating temperature -40 °C to 75 °C
• Aluminum housing with wall or DIN rail mounting option and grounding capability
• Dimensions 132 x 44.2 x 95 mm
• Weight 456 g
| Product Name | Teltonika TSW200 Industrial POE+ Switch |
|---|---|
| Weight | 0.456000 |
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps 2 x SFP ports Ethernet Fiber PHYSICAL INTERFACES (PORTS, LEDS) |
| I/O Port | 8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Dimensions | 132 x 44.2 x 95.1 mm |
| Channel Bandwidth | 20 Gbps |
| Operating Temperature | 40 °C to +75 °C |
| Manufacturer | Teltonika |
| Color | White |
| Country of Origin | Lithuania |
Product Datasheet
