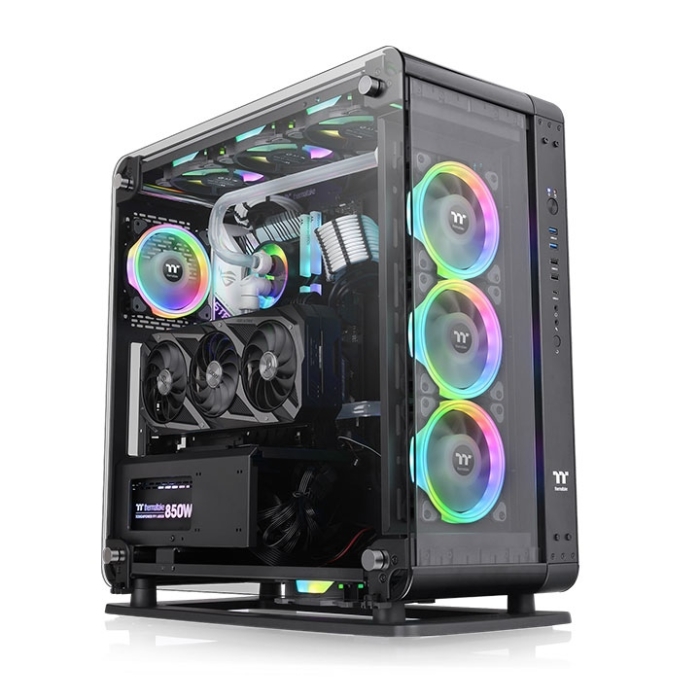

Thermaltake Core P6 Tempered Glass Mid Tower Chassis
PRODUCT OVERVIEW
The Core P6 TG Mid Tower Case is the smaller version of the Core P8 TG Full Tower Case. Just like the Core P8 TG, the Core P6 TG can be transformed into a closed or open styled form effortlessly and is the newest member of the Thermaltake iconic open-frame Core Series. The Core P6 TG features a fully modular design, Rotational PCI-E Slots, a PSU cover, an extra GPU bracket, support for 120mm and 140mm fans, support for 360mm and 280mm radiators, and removable filters. With all the significant features, the potential for the hardware expansion and cooling solution is remarkable for the Core P6 TG. Users will enjoy the process of building in the Core P6 TG Mid Tower Case and find it truly unique and innovative.
The Core P6 TG is a dual-form ATX mid tower case which can be transformed into an open frame case once the front and top tempered glass panels are removed.
The Core P6 TG is designed for use in two different ways: Wall-mounted or vertical placement. Built for customization that reflects the makers’ personality, it allows for easy adjustments to the case for the best viewing presentation while ensuring outstanding cooling performance. Users can hang it on the wall as decoration, take it to wherever they want and display the nice builds the way they want.
The Core P6 TG features three 4mm thick tempered glass panels which are designed to meet the highest standards in the industry. The enlarged glass windows permit users to fully display their RGB components in the system, and show off their dedication and skill sets.
Rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system.
Thermaltake TT Premium PCI-E 4.0 Extender (Optional) – Supports a wide range of GPU solutions with ultra-excellent quality. Available in 300mm, 300mm (90 adaptor), and 600mm.
The built-in PSU cover is designed to hide unsightly cables with overall good ventilation. The Riser Cable bracket on top of the PSU cover and an extra L-shape GPU bracket in the accessory box not only enable vertical GPU installation, but help reduce the weight on the PCI-E slots, especially when installing high-end graphics cards like NVIDIA GEFORCE RTX Series and AMD Radeon™ RX Series. Additionally, the extra GPU bracket can be used to hold vertical and horizontal placed GPUs and users can install the bracket in three ways based on their needs.
| Product Name | Thermaltake Core P6 Tempered Glass Mid Tower Chassis |
|---|---|
| Weight | 17.84 Kg |
| Case Type | Mid-Tower |
| Material | SPCC |
| Expansion Slots | 7 (Rotatable Patented Design) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5”(CEB) |
| Radiator Suupport | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Bottom: 1 x 240mm, 1 x 120mm |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm or 1 x 120mm 2 x 140 |
| Clearance | CPU cooler height limitation: 180mm VGA length limitation: 300mm (With Reservoir) 400mm (Without Reservoir) 430mm (With Radiator) 458mm (Without Radiator) PSU length limitation: 200mm |
| Dimensions | 565 x 255 x 530mm (22.2 x 10 x 20.9 inch) |
| Manufacturer | Thermaltake |
| Color | Black |
| Country of Origin | Taiwan, Province of China |
