TP-Link MC220L Gigabit Ethernet Media Converter
Please call at +971-4-3360300 or Email Us for Best Prices!
PRODUCT OVERVIEW
What This Product Does

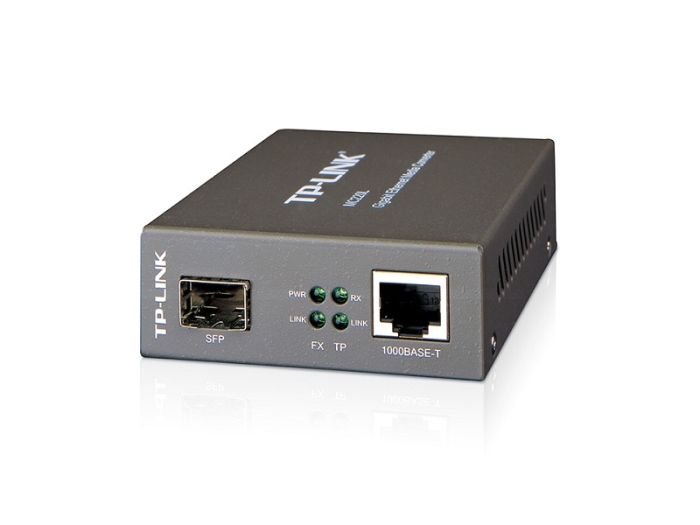

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers(0.342 miles) and 10 kilometers (6.2 miles) when utilizing single-mode fiber.
- 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- SFP port supports hot-swappable
| Product Name | TP-Link MC220L Gigabit Ethernet Media Converter |
|---|---|
| Weight | 0.453592 |
| Manufacturer | TP-Link |
| Color | Black |
Product Datasheet
