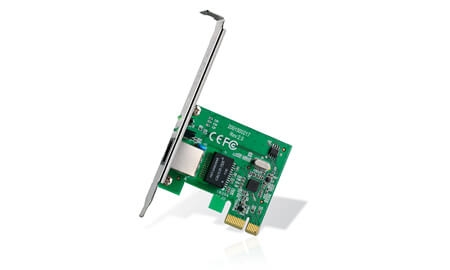

TP-Link TG-3468 Gigabit PCI Express Network Adapter
- Wake-on-LAN supporting
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE 802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
- Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
- Supports power down/link down power saving
- Supports Windows XP 32/64bit, Windows Vista 32/64bit, Windows7 32/64bit
|
Standards and Protocols |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP |
|
Interface |
32-bit PCI Express |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
Data Rates |
10/100/1000Mbps for Half-Duplex mode |
|
LED Indicator |
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act |
|
Flow Control |
IEEE 802.3x Flow Control (Full-Duplex) |
|
OTHERS |
|
|
Certification |
CE, FCC, RoHS |
|
Package Contents |
Gigabit PCI Express Network Adapter TG-3468 |
|
System Requirements |
Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits) |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Product Name | TP-Link TG-3468 Gigabit PCI Express Network Adapter |
|---|---|
| Weight | 0.45 Kg |
| Manufacturer | TP-Link |
| Color | N/A |
