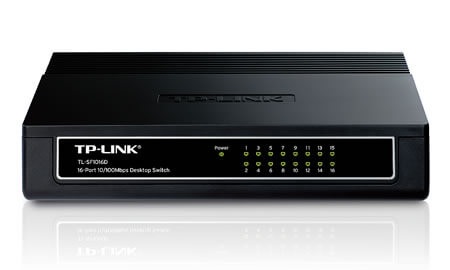

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch
- Innovative energy-efficient technology saves power up to 70%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 3.2Gbps Switching Capacity
- 9K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Fanless design ensures quiet operation
- Desktop or wall-mounting design
- Plug and Play design simplifies installation
|
Interface |
1610/100Mbps RJ45 Ports |
|
Mac Address Table |
1K |
|
External Power Supply |
100~240VAC, 50/60Hz |
|
Dimensions (W X D X H) |
7.9*5.6*1.6 in. (200*142*40 mm) |
|
Fan Quantity |
Fanless |
|
SOFTWARE FEATURES |
|
|
Transfer Method |
Store and Forward |
|
Advanced Functions |
Green Technology, saving power up to70% |
|
OTHERS |
|
|
Certification |
FCC, CE, RoHs |
|
Package Contents |
16-Port 10/10Mbps Desktop Switch TL-SF1016D |
|
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉); |
| Product Name | TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch |
|---|---|
| Weight | 0.45 Kg |
| Manufacturer | TP-Link |
| Color | Black |
