Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase, breakered load bank and individual outlet. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized.

Tripp Lite 3 phase Switched PDU Features

• IEC309 16/20A Red (3P+N+E) 360-415V 3 phase input with 6 ft. / 1.8m line cord
• 10/100 Mbps auto-sensing

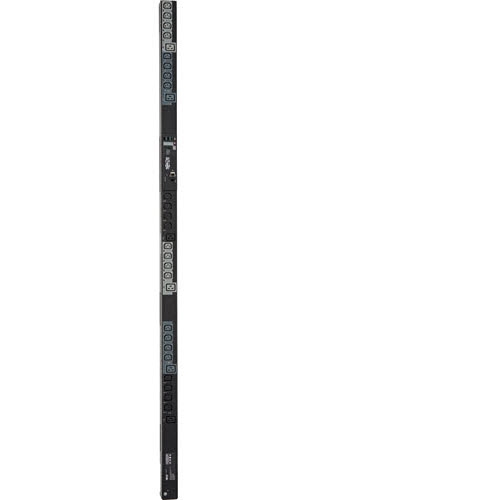

• 0U, 70 inch / 178cm vertical form factor
• 30 switched 200-240V outlets (24 C13, 6 C19) in 3 single phase load banks
• Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
• Network interface provides PDU control and data regarding input voltage and load levels per-outlet and per-phase
• Local display supports electronic 180 degree display rotation for overhead or under-floor input cable orientation
• Supports user-specified alarm notification thresholds
• DHCP/Manual configuration support
• 11.5kW Switched 360/380/400/415V input 200/220/230/240V output PDU with built-in web/network interface
• Real-time clock backup maintains the time of day and date even if the PDU is unpowered
• Tiered access privileges allow an administrator and a guest to login via web browser
• Alert notifications via email or SNMP traps offer immediate event notification
• Firmware upgrade ability supports future product enhancements
• Fully compatible with FREE PowerAlert Network Management System / NMS Software
• Included set of Plug-lock inserts keep C14 and C20 power cords solidly connected to PDU outlets
• Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
• Built-in local digital display and remote web/network interface reports detailed voltage, amperage and kilowatt output values per outlet and per phase with additional reporting options for power unbalance percentage, IP address and sensor based temperature and humidity data (requires ENVIROSENSE sensor)
• In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
• Enables reboot of locked equipment, custom power-on/power-off sequences, load shedding of optional loads and disabling unused outlets
• Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTPP, DHCP, BootP, NTP protocols
