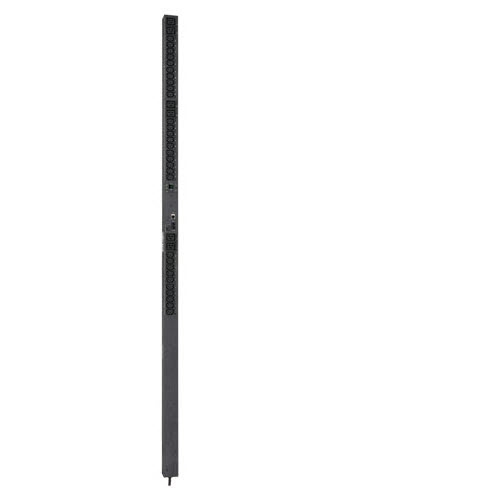

Tripp Lite 3 phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU output current consumption in amps is displayed per-phase via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers trip.

Tripp Lite 3 phase Monitored PDU Features,

• 11kW 3 phase 380/400V input, 220/230V output Monitored Power Distribution Unit (PDU) with built-in web/network interface
• Attached IEC-309 Red 16A (3P+N+E) 380/400V 3 phase input plug with.9m cord
• 0U / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
• 36 total 220/230V outlets (30 C13, 6 C19) arranged in 3 single-phase output load banks
• DHCP/Manual configuration support
• 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
• Real-time clock backup maintains the time of day and date even if the PDU is not powered on
• Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
• Alert notifications via email or SNMP traps offer immediate event notification
• Firmware upgrade ability supports future product enhancements.
• Fully compatible with FREE PowerAlert Network Management System / NMS Software
• Included cord retention brackets keep vital network equipment plugged in and continuously powered
• Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
• Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
• Built-in SNMP/Ethernet interface reports voltage, frequency and PDU loading per-phase via network or secure web browser interface with options for user specified alarm and notification thresholds
• Lighted display with scroll-button reports power consumption in amps for all 3 loading banks, IP-address self-identification and 180 degree display rotation for overhead or raised floor power feeds.
• Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
