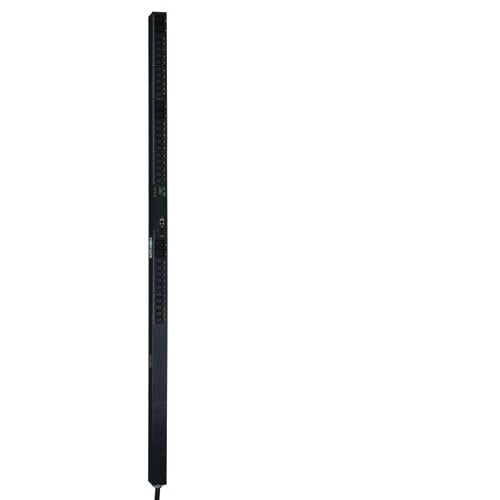

Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper start-up of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware.

Tripp Lite 3 phase Switched PDU Features

• Attached IEC-309 Red 16A (3P+N+E) 380/400V 3 phase input; 3m line cord
• 0U / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
• 24 switched 220/230V outlets (21 C13, 3 C19) in 3 single-phase load banks
• Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
• Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
• Network interface provides PDU control and data regarding input voltage, per-outlet and per-phase load levels
• Digital display with scroll-buttons supports per-outlet or per-phase load levels, IP-address self-identification and 180 degree display rotation
• Supports user-specified alarm notification thresholds
• DHCP/Manual configuration support
• 10/100 Mbps auto-sensing
• Real-time clock backup maintains the time of day and date even if the PDU is not powered on
• Tiered access privileges allow an administrator and a guest to login via web browser
• Alert notifications via email or SNMP traps offer immediate event notification
• Firmware upgrade ability supports future product enhancements
• Fully compatible with FREE PowerAlert Network Management System / NMS Software
• Included cord retention brackets
• Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
• TAA Compliant Version Available - Order Tripp Lite PDU3XVSR10G1TAA
• In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
• Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
• 11kW 3 phase 380/400V input, 220/230V output Switched Power Distribution Unit / PDU with built-in web/network interface
