Tripp Lite 2-2.4kW Single-Phase ATS/Metered PDU, 200-240V Outlets, 1U Rack-Mount, TAA

Actual Stock Can Be Confirmed After Placing the Order.
SKU
PDUMH15HVAT/ PDUMH20HVAT

Price Match Request

Please call at +971-4-3360300 or Email Us for Special Pricing!

Pay 4 interest-free payments of AED 421.00.Learn more
Tripp Lite 3.2-3.8kW Single-Phase Monitored PDU, 200-240V Outlets, Rack-Mount, TAA. Monitored 16/20A 200-240V PDU, 1U horizontal rackmount. Temperature, humidity and contact-closure monitoring options.

tripplite-logo

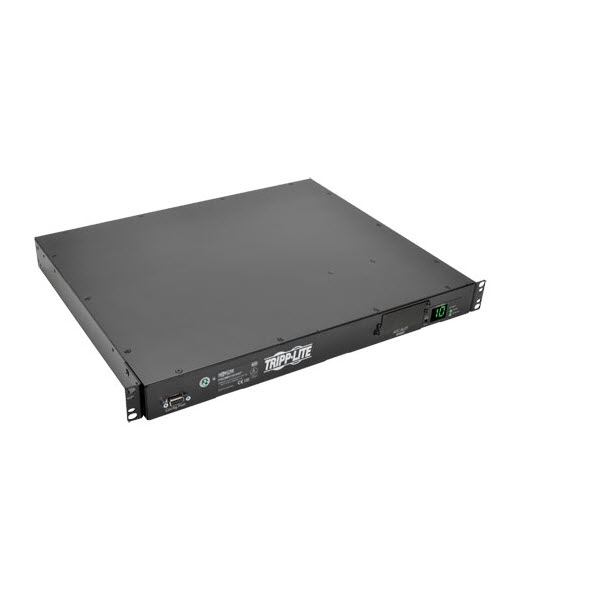

The Tripp Lite PDUMH15HVAT 2–2.4kW Single-Phase 200–240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.

Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.

Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200–240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Tripp Lite PDUMH15HVAT 2–2.4kW Single-Phase 200–240V ATS/Metered PDU Features,

Primary and Secondary Inputs for Power Redundancy

  • Enables redundant power for network devices with non-redundant power supply configurations
  • Dual 3.6 m input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources
  • 10 C13 outlets

Advanced Network Monitoring Options

  • Built-in card slot accommodates SNMPWEBCARD and WEBCARDLX accessories (sold separately)
  • Optional cards create a switched PDU by allowing remote access for power monitoring, configuration, outlet control and notification via web browser, SSH, telnet or SNMP
  • Switches to secondary power source if primary source fails or becomes unstable
  • 2–5 ms transfer time ensures uninterrupted operation of connected equipment
  • Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source

Automatic Transfer Switching

  • Dynamic solid-state (TRIAC) automatic transfer switching

Digital Load Meter

  • Easy-to-read ammeter displays total current used by connected equipment

LED Indicators

  • Individual LEDs display outlet on/off status and input power status on primary and secondary inputs
More Information
Product Name Tripp Lite 2-2.4kW Single-Phase ATS/Metered PDU, 200-240V Outlets, 1U Rack-Mount, TAA
Weight 2.12 Kg
Manufacturer Tripp Lite By Eaton
Color Black
